Chain actuator for VELUX window

Chain actuator for surface mounting.
For smoke and comfort ventilation.
For VELUX top hung, tilt-and-swing windows GPL and GPU from size M06 and VK from size 045.

Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate.

Smoke ventilation
The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat.

Stroke (mm)

600
Max Force (N)

300
Supply Voltage

24Vdc
Max Current (amps)

1
Max Speed (mm/s)

14
Window Types

Centre Pivot
IP Rating

IP32
Manufacturer

Colour/Finish

Anodised Aluminium
Application

Natural Ventilation

Brand

Window Master
WindowMaster brand products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

WMU 836 03

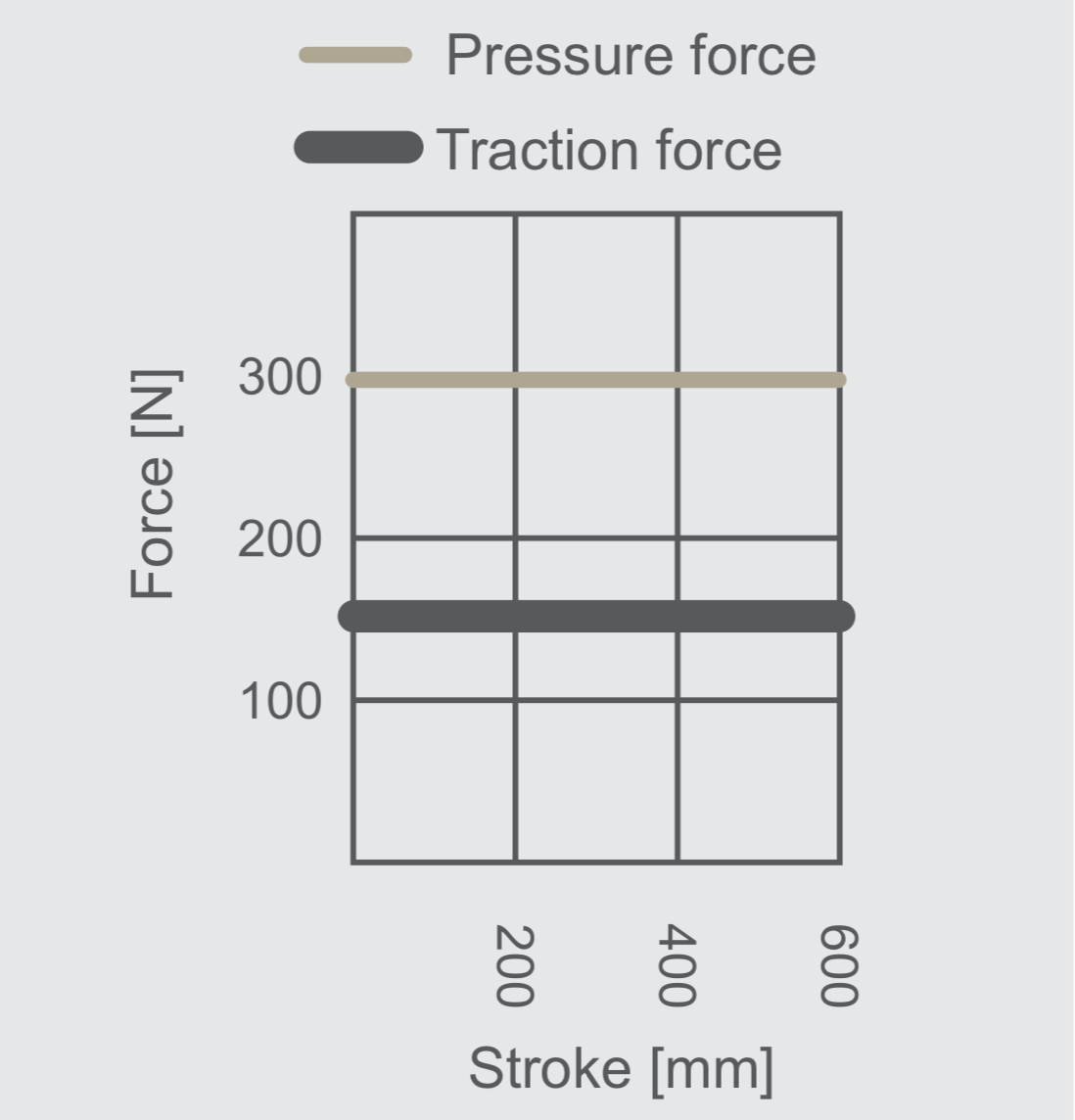

Force (pressure/tractive):

150N / 300N
Chain stroke:

600mm
Opening speed:

11mm/s (programmable up to 14mm/s)
Nominal voltage:

24V DC (max. 25% ripple)
Voltage:

20 – 36V DC
Open-circuit voltage:

max. 36V DC
Current consumption:

max. 1A
Operating conditions:

-5°C – +74°C, max. 90% relative humidity (not condensing)
Switch-on-duration:

ED 40% (max. 4min. per 10min.)
Size:

650 x 34 x 47mm (W x H x D)
Weight:

 2.6kg
IP rating:

 IP32
Fire test:

 testet according to DIN 18232-3, part 3.6 (30 min./300°)
Life span:

 tested with 10,000 opening and closing movements
Delivery includes:

actuator with 2m cable, chain bracket WAB 836E, actuator bracket WAB 836B 01 and cover

Download PDF's

Window Master WMU 836 03 Data Sheet
Window Master WMU 836 03 installation
