Description

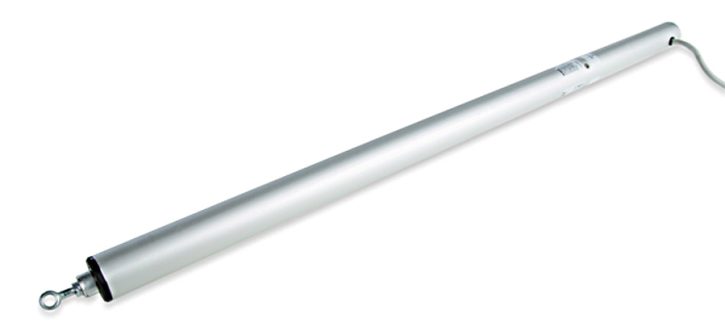

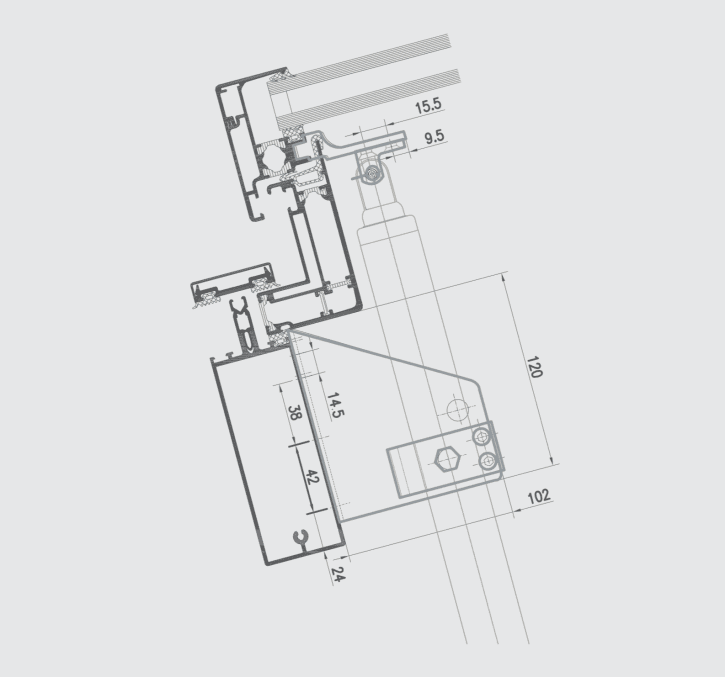

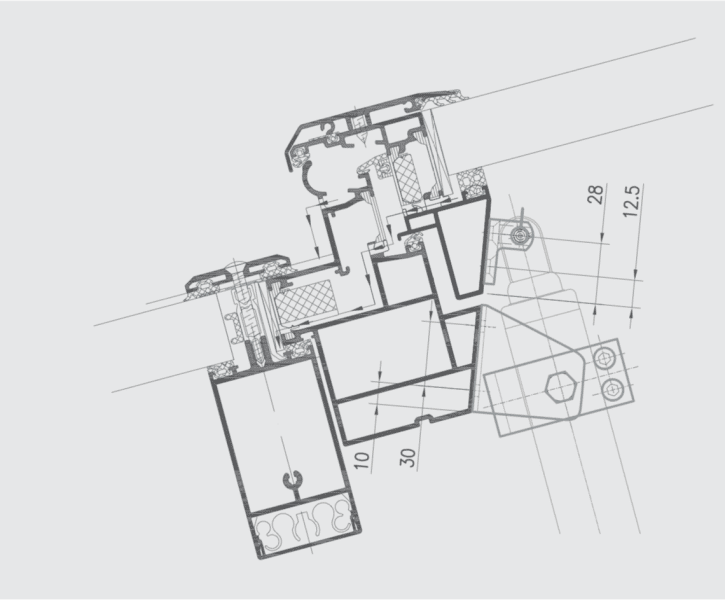

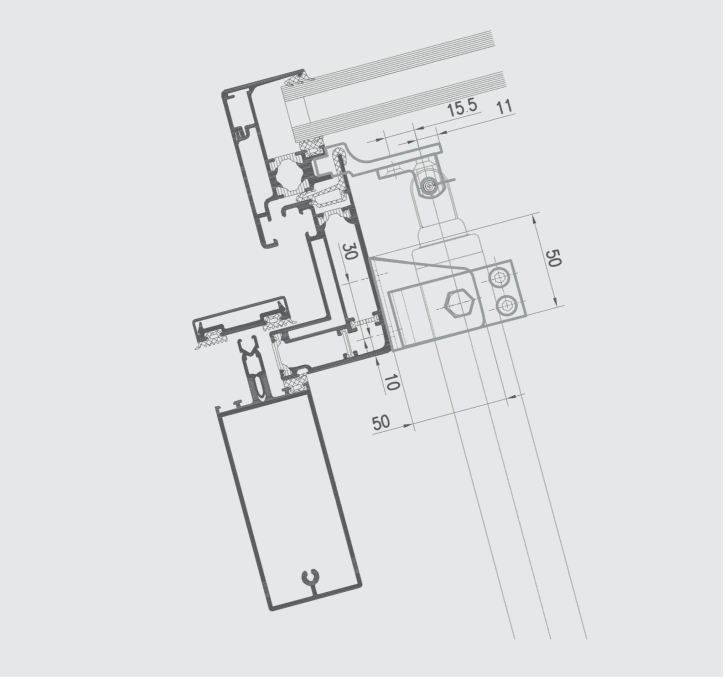

Strong actuator suitable for roof openings for comfort ventilation
To be used together with ±24V control units or control units with MotorLink®
Synchronization of up to 4 window actuators – no need for an external synchronization module
Genuine position feedback and 3 speeds when using control unit with MotorLink®
The electronics in this actuator can be programmed to suit specific requirements – i.e. pressure- and traction force, stroke, speed/sound level – with the WAT 100 programming box, this is also possible following installation
The actuator has an integrated reverse function to ensure a prolonged life span of the window gaskets
Brackets and fastenings to be ordered seperately.
Additional information
| Manufacturer |
|---|
Brand
Window Master
Product Applications
|
This product is suitable for:
 |
Technical Details
Model:
WMS 306-n
Nominal voltage:
24V DC (+30% -20%) max. 10% ripple
Traction force:
600 N
Thrust force:
600 N
Strokes:
300 mm / 500 mm /750 mm
Absorbed current at nominal load:
0,21 / 0,14 A
0,63 A
Power absorption at nominal load:
17 W
15 W
Average speed:
4 mm /s
4 mm / s
Length of power cable:
2 m
2 m
Electrical insulation:
Class II
Class III
Type of service:
2 cycles
5 cycles
Operating temperature:
– 20°C + 70°C
Protection Class:
IP66
IP66
End stroke stop:
Electronic with magnetic selector
Electronic with magnetic selector
Stroke travel at max load:
25 / 50 / 75 s
25 / 50 / 75 s
Dimensions:
72 x 34,5 x 344 / 444 / 594 mm
72 x 34,5 x 344/ 444 / 594 mm
Weight:
0,89 kg
0,87 kg
Window Master WMS 306-n instructions
