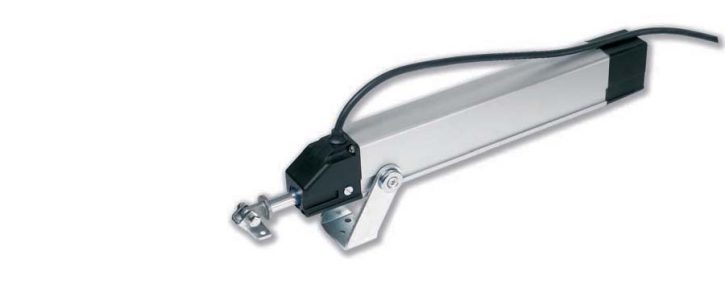

Mingardi Euro 1 (200mm)
MINGARDI linear electric actuator with rigid rod. Operating voltage: 230V AC 50Hz or 24V DC. In compliance with the relevant European Directives. Equipped with a system of electronic limit switch in opening and closing with overload protection. Possibility of parallel wiring. The stroke can be adjusted from the outside through a register.

Mingardi Euro 1 (200mm) Colors available: anodised silver. Complete with fixing accessories.

Additional information




Product Applications

This product is suitable for:

  • Top-hung windows
  • Domes
  • Louvre Windows

Technical Details

Mingardi Euro 1 (200 mm stroke model)
Power Supply:
24 V
 230 V – 50 Hz
Absorbed Power:
35 W
35 W
Min Speed:
ca. 10 mm/s
ca. 10 mm/s
Thrust Force:
450 N
450 N
200 mm
200 mm


Download PDF's

Mingardi D4 Instructions

Mingardi D4 Motor
