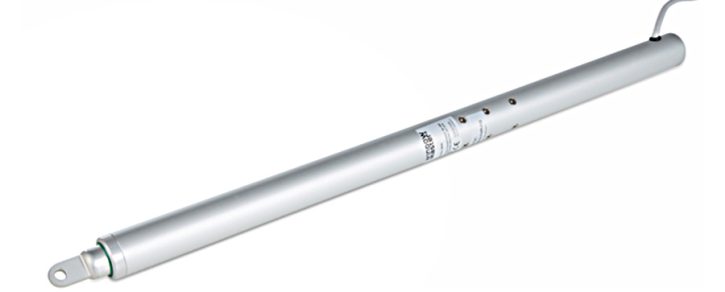

Spindle actuator 900N MotorLink®

Spindle actuator 900N with MotorLink®
For smoke and comfort ventilation

24V Nominal voltage
The product is to be connected to a ±24V power supply

Smoke ventilation according to EN 12101-2
The product is suitable for smoke ventilation according to EN 12101-2 and uses natural driving forces for the efficient exhaust of smoke and heat

MotorLink®
The product communicates with power supplies with MotorLink® – an intelligent patented digital communication from WindowMaster

Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

Strong actuator suitable for roof openings for smoke and comfort ventilation
To be used together with ±24V control units or control units with MotorLink®
Synchronization of up to 4 window actuators – no need for an external synchronization module
Genuine position feedback and 3 speeds when using control unit with MotorLink®

The electronics in this actuator can be programmed to suit specific requirements – i.e. pressure- and traction force, stroke, speed/sound level – with the WAT 100 programming box, this is also possible following installation

The actuator has an integrated reverse function to ensure a prolonged life span of the window gaskets
Brackets and fastenings to be ordered seperately.

Additional information

Manufacturer

Brand

Window Master
WindowMaster brand products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas

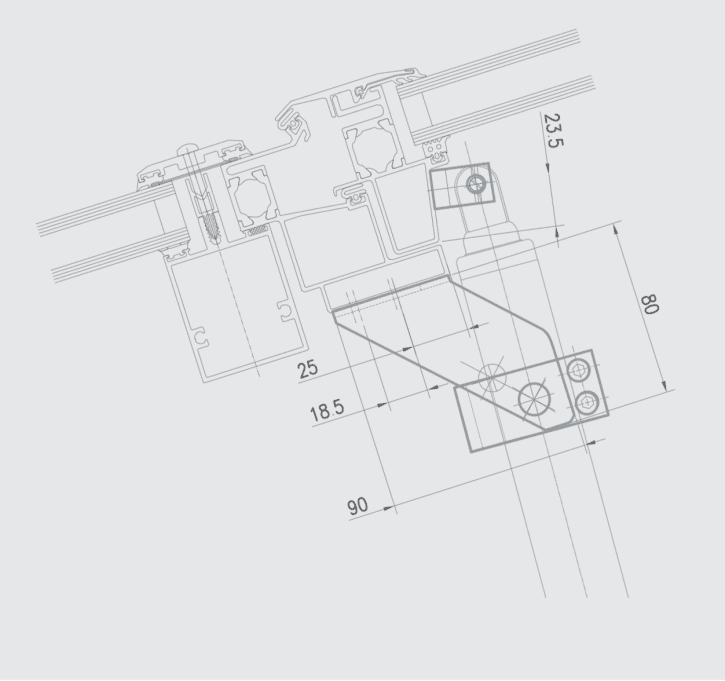

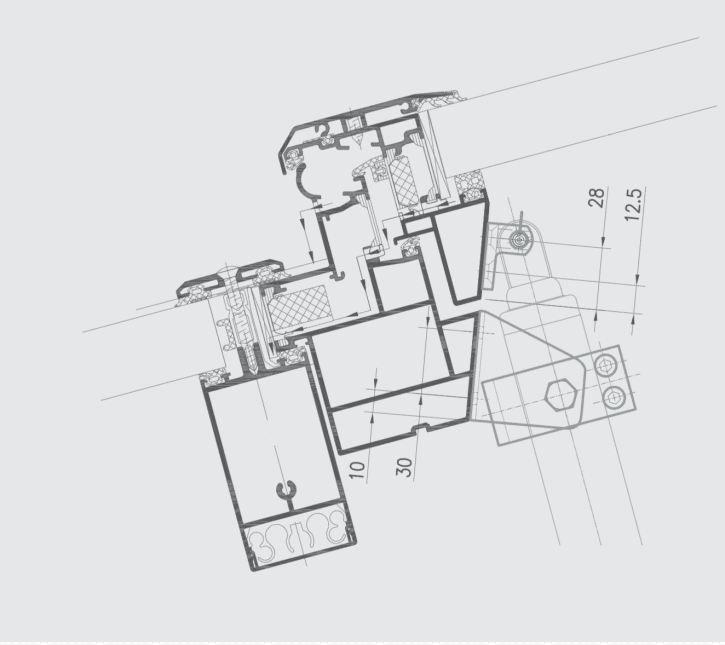

Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

WMS 409-n
Nominal voltage:

24V DC max. 10% ripple
Traction force:

900 N
Thrust force:

900 N
Strokes:

300 mm / 500 mm /750 mm /1000 mm
Locking Force:

2850N
Current Consumption:

1.8A
Opening speed:

12.5mm/s (full load)
Length of power cable:

5m grey connection cable in silicone 3-core 0.75mm2 ø7.0mm
Operating temperature:

-5°C – +74°C max. 90% relative humidity (not condensing)
Protection Class:

IP54 according to EN 50529
Weight:
WMS 409-1 0300
 1.8 kg

WMS 409-1 0500
 2.3 kg

WMS 409-1 0750
 2.7 kg

WMS 409-1 1000
 3.1 kg
