Window Master NV Dongle

Description

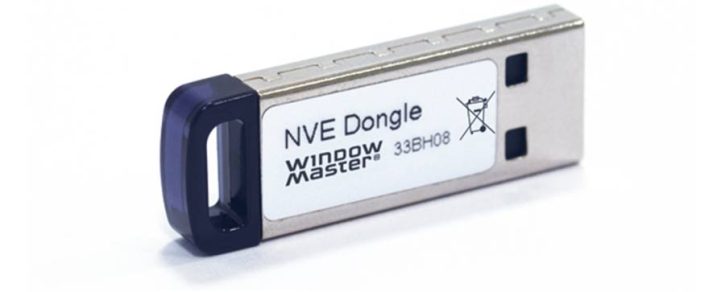

Window Master NV Dongle

NV Embedded® USB-dongle

• Contains the license for NV Embedded^®
• Enables a connection to the database in the cloud-solution
• One USB-dongle per MotorController used in the NV Embedded^® solution

Natural ventilation

The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

To activate the integrated NV Logic in the MotorController the USB-dongle must be inserted in a MotorController Type WCC 310 Plus version 02 or WCC 320 Plus version 02.

The dongle activates all available NV-zones / motor lines in the MotorController.

The dongle contains an encrypted file and a unique serial number which enables the MotorController to establish a connection to the database in the cloud-solution.

Each MotorController used in the NV Embedded^® solution must be fitted with a USB-dongle.
