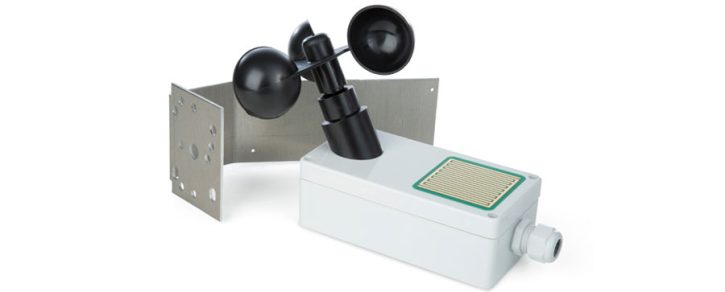

Window Master WSA 340

Wind and rain sensor

  • Wind / rain sensor
  • Used for detecting wind respectively rain


Natural ventilation

The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

The sensor can be connected directly to the control units WUC 102, WCC 310/320 and to all WSC 3xx / 5xx units (smoke and ventilation control units) as well as NV Comfort®

Additional information



Window Master
WindowMaster brand products

Technical Details

WLA 340 01
Supply voltage:
18 – 26 VAC / 20 – 32 VDC, 45 mA at idle, max. 60mA
80 x 160 x 55mm (W x H x D) (without anemometer)
80 x 235 x 175mm (W x H x D) (with anemometer)
Light grey

Download PDF's

Window Master WLA 340 01 installation

Window Master WLA 340 01 Data Sheet
