Description

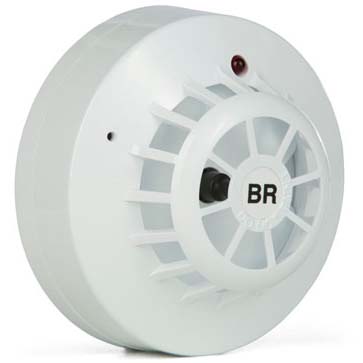

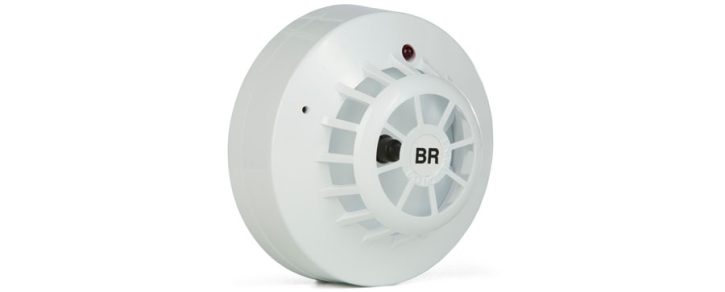

Window Master WSA 310 01
Differential heat detector
- Differential heat detector
- Reacting to a rapid rise in temperature
Smoke ventilation
The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat
VdS certified
The product is certified in accordance with the independent testing institution VdS
The differential heat detector is reacting to a rapid rise in temperature, and ensures early detection of fires.
The differential heat detector is used in areas where surrounding conditions do not permit the use of smoke detectors.
The differential heat detector has wide intake holes to allow the air flow to reach the terminal sensors immediately, where the heat is measured and evaluated. Indication of alarm via red LED.
With a rapid rise in temperature and at a maximum temperature of 75°C the differential heat detector is triggered and will send signal to and the smoke panel for activating the alarm.
The signal from the differential heat detector has priority in the WSC unit.
The differential heat detector is tested according to Vds. Approval no.: G200060.
Additional information
| Manufacturer |
|---|
Brand
Window Master
Window Master WSA 310 01 installation
