Brand: D+H | Manufacturer Part numbers: ZA-K-BSY+
- Roof & Skylight windows
- Top & bottom hung windows
- Conservatory Ventialtion
Power Supply: 230 V AC / +10 % … -15 % / 50 Hz
Force: 800 N
Stroke: 100 – 1500 mm
Nominal locking force: Max. 1400 N (1100 N ***)
Protection Class: IP65
Options listed in Download Pdf below.
Get in touch for help picking the right brackets for your window.
Call 01702 826267 to order or for advice
Next Day Delivery on 100s of Products
Free for Trade & Public
Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

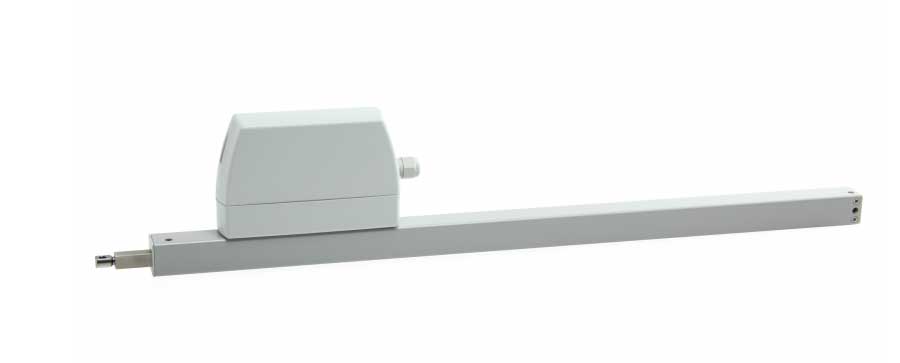

The ZA-85-K-BSY+ offers all the advantages of the ZA 35-K-BSY+ such as the synchronisation of multiple drives, while featuring a much higher force of 800 N. And it does all this at a moderate current consumption.
Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
With integrated BSY+ motor and synchronised electronics controlled via microprocessor
Direct control via 230 V AC
Option of up to 4 drives in one synchronous group
Low current consumption thanks to high efficiency
Option of cable infeed above and below
Drive unit can be changed from left to right
Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)
Order Now by Phone
The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.
To Order Dial: 01702 826 267
This product is suitable for:
