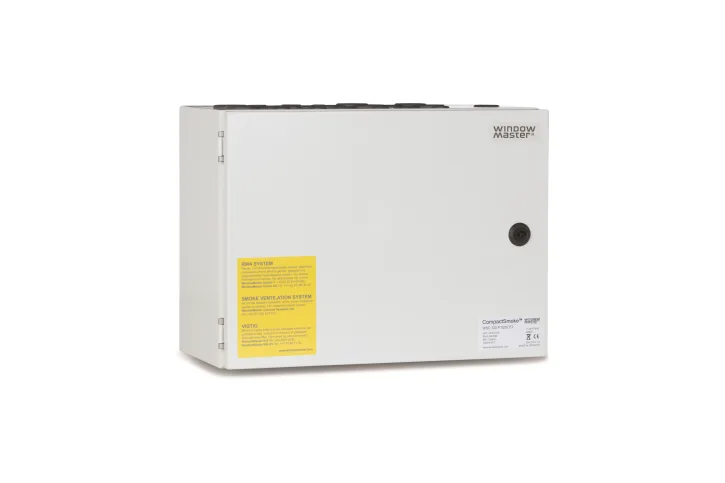

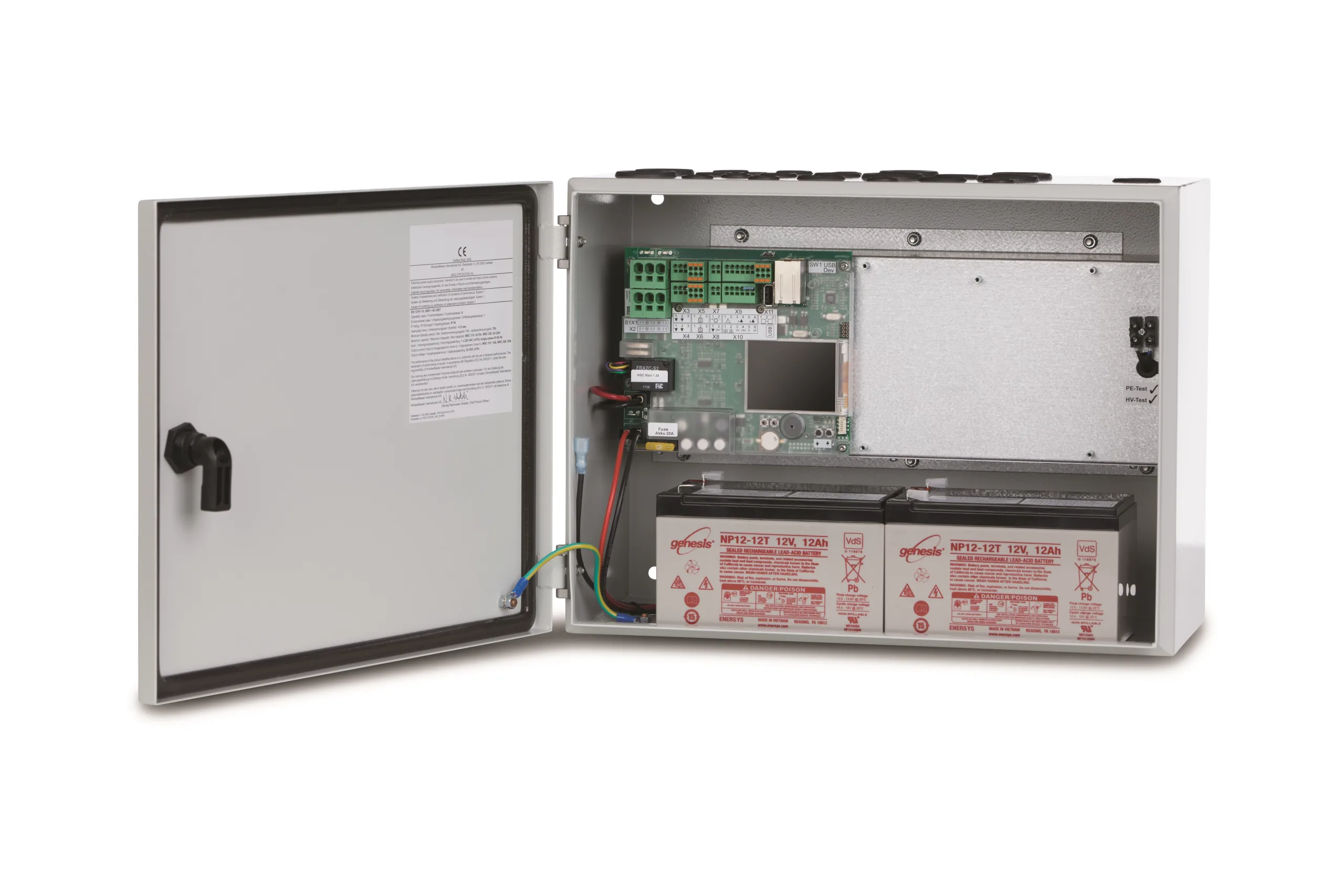

WSC 320 Plus – 10 zone – 20 amp

Description

Smoke control panel for smoke and comfort ventilation

An easy to configure alternative/replacement for the WSC 320 Standard.  The panel can be used in small and medium sized buildings as well as in building sections e.g. staircases and restaurants.

The panel has:

• Up to 10 smoke / 10 daily ventilation groups
• 20A maximum capacity

Touch screen
The panel has a build in 2½” LCD touch screen which makes it easy to configure, commission and maintain the panel – also without the need for a PC. System errors are described precisely on the touch screen to facilitate troubleshooting and initialization.

Opening speeds
This panel gives the possibility of up to three actuator speeds depending on the type of the connected actuator:
a) ±24V DC standard actuator – 1 speed (H&S)
b) MotorLink® actuator – 2 speeds (H&S / manually operated)
c) MotorLink® actuator and bus communication – 3 speeds
(H&S / manually operated / automatically)

The different speeds
H&S: a fast speed with H&S ventilation and security functions.
H&S has always first priority

• Manually operated: a faster and audible speed when manually operated by comfort ventilation
• Automatically: a slow and almost soundless speed, when controlled automatically by comfort ventilation

Ease of cabling
The use of bus technology for the break glass units means that the need for cabling in the building is significantly reduced. The break glass unit bus is initialized directly on the panel’s touch screen.

Smoke ventilation based on wind direction
The smoke ventilation panel can be set so that opening and closing of windows are determined by wind direction and speed. This means that facades can be utilized efficiently as part of the smoke ventilation without acquisition of additional modules aside from a wind direction sensor.

Bus communication
Comfort ventilation also possible with KNX, BACnet IP or BACnet MSTP due to bus technology together with e.g. NV Comfort® or NV Advance®.

Certification
Approved and certified according to EN 12101-10.

Key Features

• Natural ventilation
  The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate
• Smoke ventilation according to EN 12101-10
  The product is suitable for smoke ventilation according to EN 12101-10 and uses natural driving forces for the efficient exhaust of smoke and heat
• 230V rated voltage
  The product use rated voltage 230V
• MotorLink®
  The product communicates with control panels with MotorLink® – an intelligent patented digital communication from WindowMaster
• BACnet
  The product is BACnet compliant, BTL tested and supports this BUS communication
• KNX certified
  The product is KNX certified and supports this BUS communication
• Modbus
  The product is Modbus compliant and supports this BUS communication
• Smoke ventilation according to ISO 21927-9
  The product is suitable for smoke ventilation according to ISO 21927-9 and uses natural driving forces for the efficient exhaust of smoke and heat
