Description

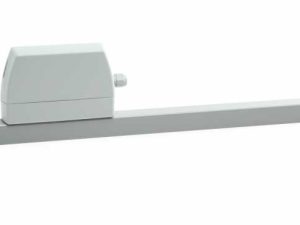

D+H ZA-0800-1-PLP 350mm

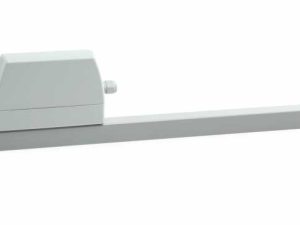

The D+H ZA-0800-1-PLP is the all-rounder of D+H rack and pinion drives: It provides the perfect balance of current consumption and power. It is more powerful than the ZA-0300-1-PLP with 800 N of force of pressure and tensile force.
Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
With motor electronics controlled via microprocessor
Low current consumption thanks to high efficiency
Option of cable infeed above and below
Drive unit can be changed from left to right
Programmable drive functions and different drive parameters
Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)
Additional information
Manufacturer |
---|
Brand
Product Applications
This product is suitable for:
|
