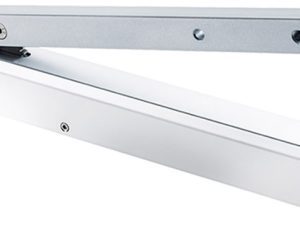

Programmable 24V DC folding arm actuator which can open a hinged door or window to at least 90°. Can be used individually or as a pair in synchronous or sequential modes.
The motor supports WindowMaster motor link and is supplied with a 5m fly lead.
| Actuator Voltage | 24Vdc |
|---|---|
| Max Current (amps) | 1 |
| Max Force (N) | 250 |
| Locking Force (N) | 2000 |
| Colour/Finish | Anodised Aluminium |
| IP Rating | IP32 |
| Maximum opening angle | Open Out: 90°, Open In: 98° |
| Application | Natural Ventilation, Smoke Ventilation |
| Manufacturer |
