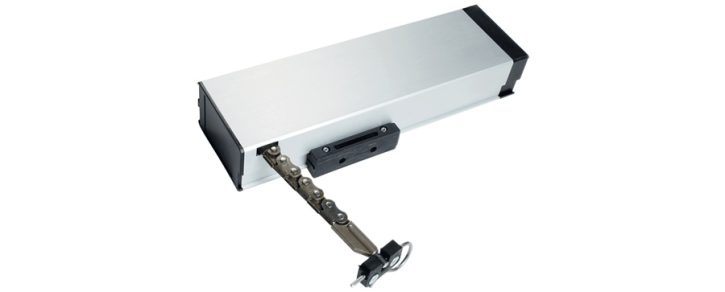

Ultraflex Control Systems SINTESI 2000
MAIN FEATURES:
Possibility of selecting two different strokes: 250 mm or 380 mm.
Three dovetail slides for an easy installation; the sliding fixing bracket is included in the package.

SINTESI 2000: exclusive system for electircal connection.
The special removable plug allows a very quick and easy connection.
It is deal for the final test of the actuators on the building site.

Stroke (mm)

Selectable, 250, 380
Max Force (N)

180
Supply Voltage

230Vac
Max Current (amps)

0.65
Max Speed (mm/s)

40
Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung
IP Rating

IP20
Manufacturer

Colour/Finish

Dark Brown Anodised, Silver Anodised, White (RAL 9010)
Application

Natural Ventilation

Brand

Ultraflex Control Systems
Ultraflex Control Systems - UCS Products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

UCS SINTESI 2000
Voltage Supply:

230V AC +/-10%
Current Absorption (Max load):

0,65 A
Operation:

THREE WIRES (OPEN/CLOSE/COM)
Max Force:

180 N
Speed:

40 MM/S
Limit Stop:

MICRO SWITCHES
Protection:

THERMIC
Parallel Connection:

YES
PROTECTION CLASS:

 IP20
Available Stroke:

 250 / 380 MM

Download PDF's

Ultraflex Control Systems UCS SINTESI 2000 data sheet

Ultraflex Control Systems UCS SINTESI 2000 Manual
