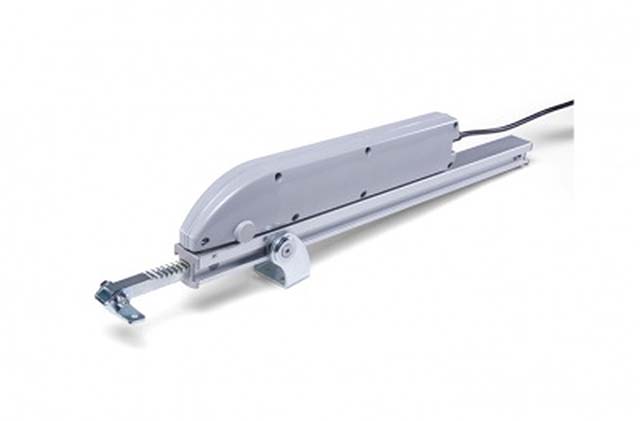

Mingardi Drive Evo 2 – 180mm

Mingardi Drive Evo 2 – 180mm
Electrical linear actuator for the automation of top hinged window, pivot window, skylights, domes and sunshade systems.

Mingardi Drive Evo 2 180mm version offers maximun flexibility thanks to its different configurations and voltages.

Suitable for wide window frames with tandem application
Strokes up to 180 mm
Extended voltage range 110 – 240V AC (50/60 Hz)
Aluminium gearmotor body
Double electrical insulation: Class II version 110 – 240V AC (50/60Hz)
Protection degree: IP 55 electrical parts
Soft stop closing to preserve the window frame
Steel rack
Fixing pivoting bracket sliding along the whole rack body
