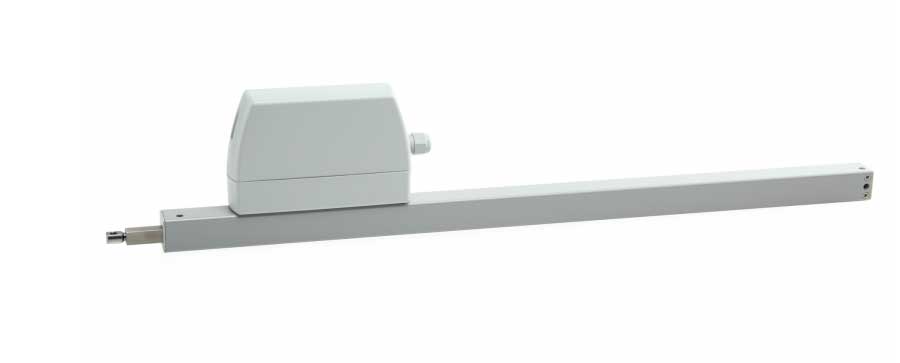

D+H ZA 105-K-BSY+
Similar properties to the ZA-K, but with the addition of BSY+: Our ZA-K-BSY+ can control up to four drives simultaneously. Passive closing edge protection is achieved by reducing the running speed to five millimetres per second in the CLOSED direction.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
With integrated BSY+ motor and synchronised electronics controlled via microprocessor
Direct control via 230 V AC
Option of up to 4 drives in one synchronous group
Low current consumption thanks to high efficiency
Option of cable infeed above and below
D+H ZA 105-K-BSY+ Drive unit can be changed from left to right
Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)

Additional information



Product Applications

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion

Technical Details

ZA 105-K-BSY+
Power Supply:
230 V AC / +10 % … -15 % / 50 Hz

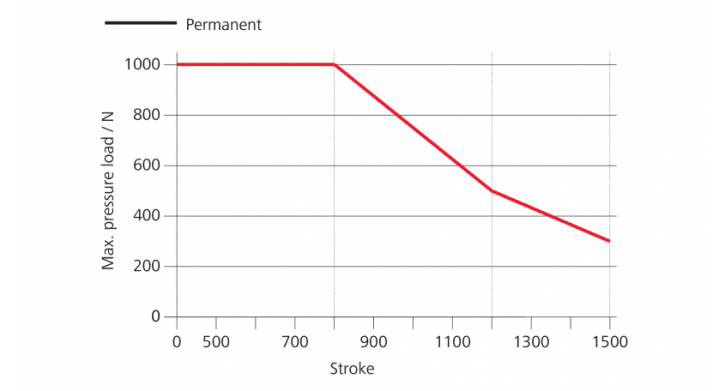

Force of pressure:
1000 N
Tensile force:
1000 N
Nominal locking force:
Max. 1400 N (1100 N ***)
100 – 1500 mm
OPEN running speed:
7.1 mm/s
OPEN running speed – SHEV:
8 mm/s
CLOSED running speed:
7.1 mm/s
IP 65
Temperature range:
-15 °C (-5 °C ***) … +75 °C
Emission sound pressure level:
LpA ≤ 51 dB(A)
Fire Resistance:
B300 (30 min / 300 °C)
2.5m silicone cable
A: 225 – 1662 mm
