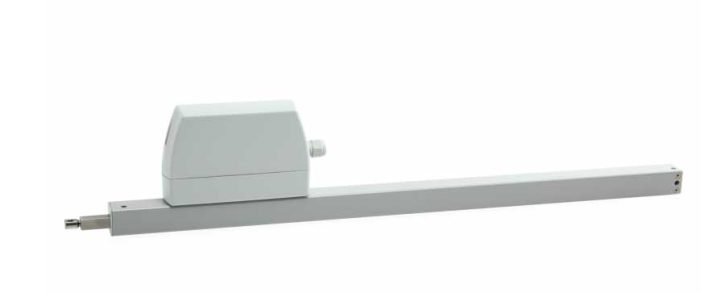

D+H ZA-1000-1-PLP

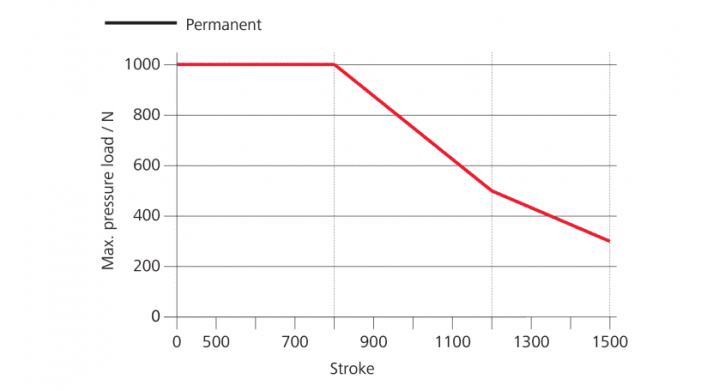

Tried-and-tested design with extra power: The D+H ZA-1000-1-PLP visually resembles the ZA-0300-1-PLP, however, it is significantly more powerful with 1000 N of force of pressure and tensile force up to a stroke of 800 mm.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
With motor electronics controlled via microprocessor
Low current consumption thanks to high efficiency
Option of cable infeed above and below
Drive unit can be changed from left to right
D+H ZA-1000-1-PLP Programmable drive functions and different drive parameters
Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)

Additional information



Product Applications

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion

Technical Details

Power Supply:
24 V DC / ±15 % / 1.2 A
Force of pressure:
1000 N
Tensile force:
1000 N
Nominal locking force:
1100 N
100 – 1500 mm
OPEN running speed:
7.1 mm/s
OPEN running speed – SHEV:
8 mm/s
CLOSED running speed:
7.1 mm/s
IP 65
Temperature range:
-5 °C … +75 °C
Emission sound pressure level:
LpA ≤ 51 dB(A)
Fire Resistance:
B300 (30 min / 300 °C)
2.5m silicone cable

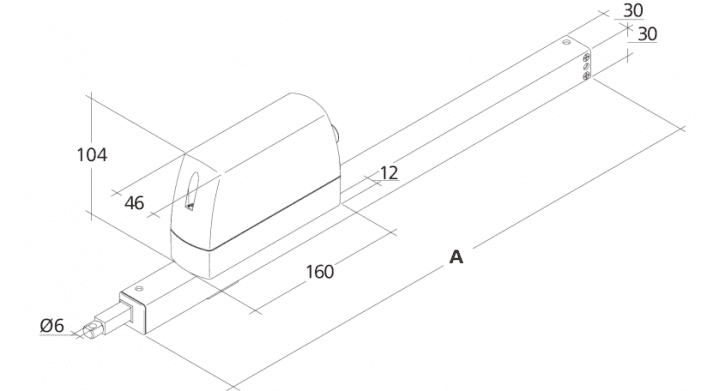

W x H x D:
A: 225 – 1662 mm

Download PDF's

ZA-1000-1-PLP Instructions
