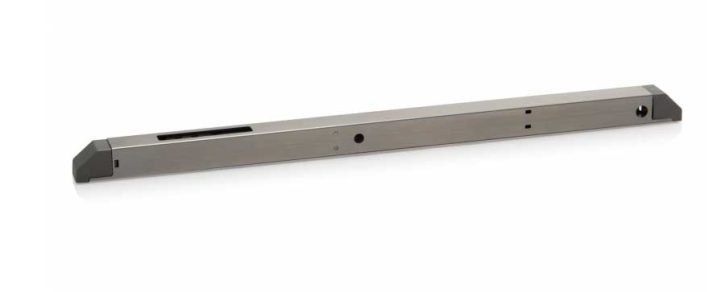

D+H VLD 51-BSY+
D+H VLD 51-BSY+ is a true expert in safety. Much like the VLD 51, it can be integrated into the window profile thanks to BSY+ technology, however, larger windows can also be locked. Up to six drives can be controlled in synchronisation.
Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
With motor electronics controlled via microprocessor for communication and sequence control of connected BSY+ window drives for opening windows
Up to 6 VLD BSY+ drives on one window possible
For operating standard latch pane fittings
Activated VP signal of the connected BSY+ opening drives
Programmable drive functions and different drive parameters
Manual emergency unlocking possible
D+H VLD 51-BSY+ Configurable locking direction on the drive
Increased burglary protection
Technical Details
24 V DC / ±20 % / 1 A
1000 N
OPEN running speed – SHEV:
4.2 mm/s
3.3 mm/s
IP 50
Emission sound pressure level:
LpA ≤ 70 dB(A)
-15 °C (-5 °C **) … +75 °C
B300 (30 min / 300 °C)
V2A stainless steel
VLD 51-BSY+ Instructions
Black
