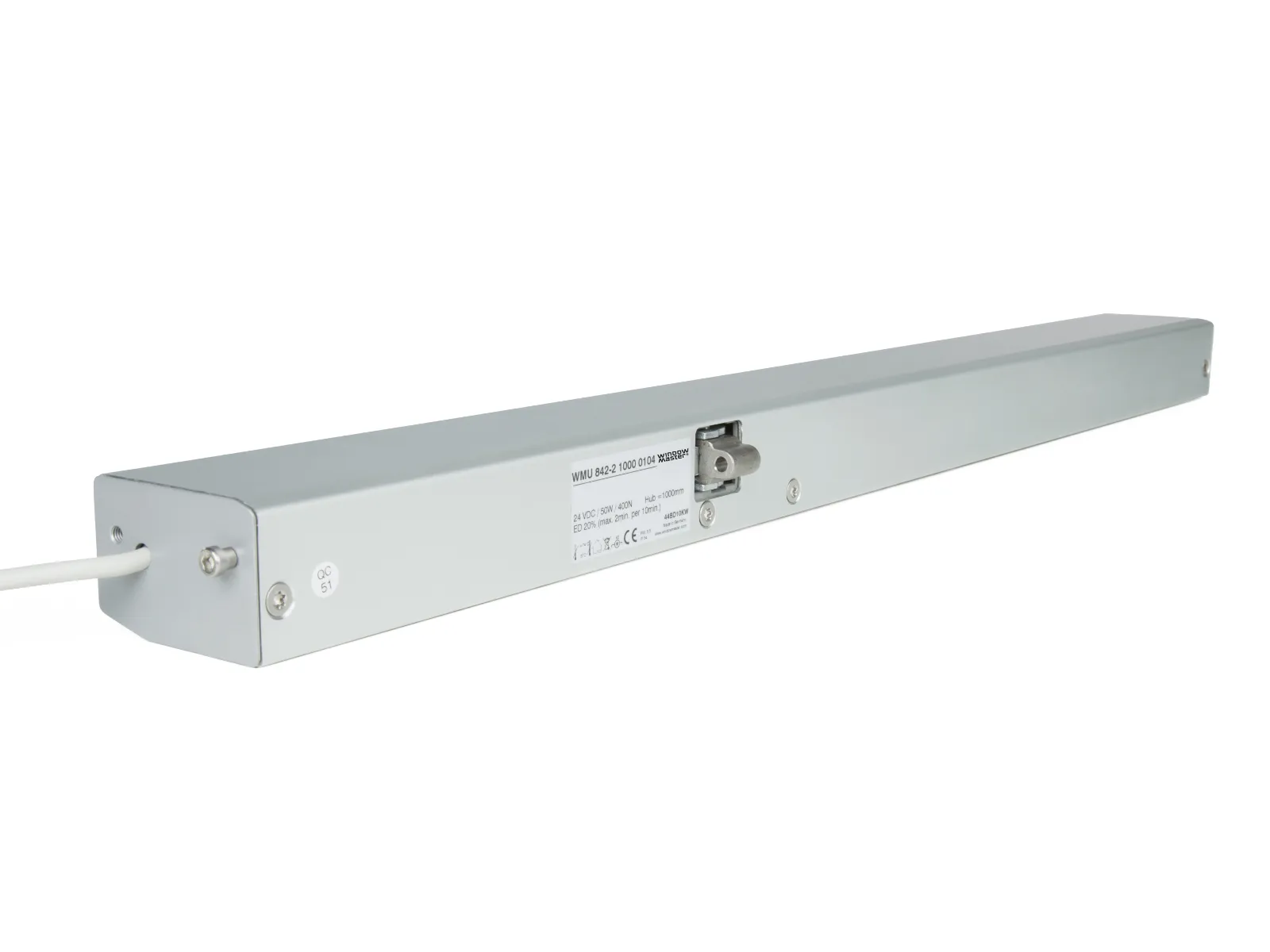

Description

Complete opening of the window within 60sec. (depending on the programming).
The actuator is approved according to EN 12101-2 with selected profiles – please contact WindowMaster for further information.

Natural ventilation

The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

Smoke ventilation according to EN 12101-2

The product is with selected profiles and correct fabrication documentation suitable for smoke ventilation according to EN 12101-2 and uses natural driving forces for the efficient exhaust of smoke and heat

Smoke ventilation according to B300

The product is suitable for smoke ventilation according to B300 and use natural driving forces for the efficient exhaust of smoke and heat

±24V Nominal voltage

The product is to be connected to a ±24V control panel

MotorLink®

The product communicates with control panels with MotorLink® – an intelligent digital communication from WindowMaster

NF certified

The product is certified for France according to the standards NF S 61-937-1, NF S 61-937-7 and NF S 61-937-8

Description

  • To be used together with ±24V control units or control units with MotorLink®
  • Can be used together with espagnolette WMB
  • Synchronization of up to 4 window actuators – no need for an external synchronization module
  • Genuine position feedback and 3 speeds when using control unit with MotorLink®
  • Soft close function
  • Built-in electronic load switch-off/end stop
  • Electronic actuator with micro controller
  • The actuator has an integrated reverse function to ensure a prolonged life span of the window gaskets
  • Easy mounting
  • Actuators for USA and Canada are UL certified and are supplied without cable

Additional information

Stroke (mm)

750, 1000

Max Force (N)

1000

Supply Voltage

24Vdc

Max Current (amps)

5

Max Speed (mm/s)

12.7

Locking Force (N)

3000

Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung

IP Rating

IP54

Manufacturer

Colour/Finish

Anodised Aluminium

Application

Natural Ventilation, Smoke Ventilation

Download PDF's

Window Master WMU 885 Data Sheet
Window Master WMU 885 installation
