Description

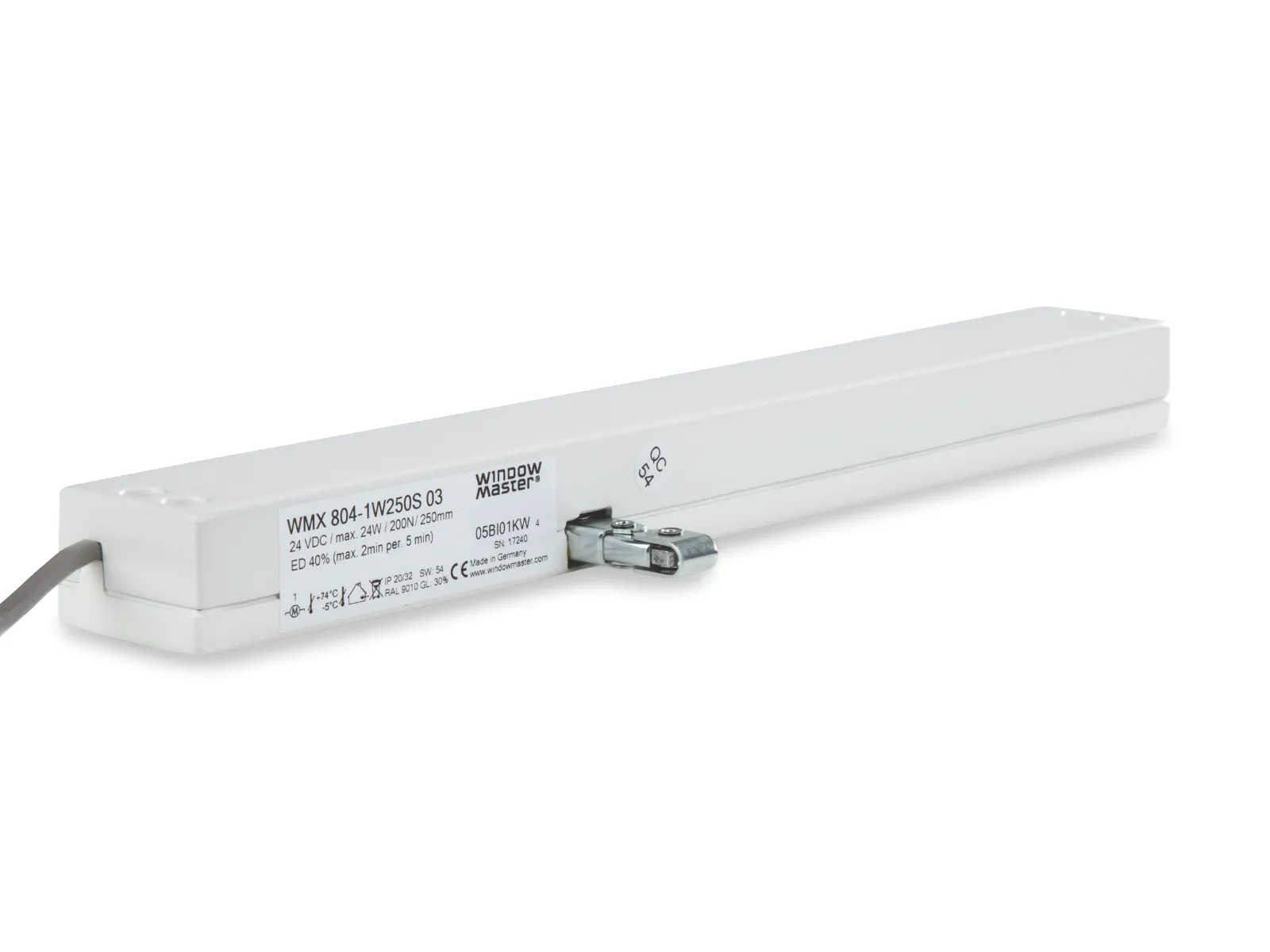

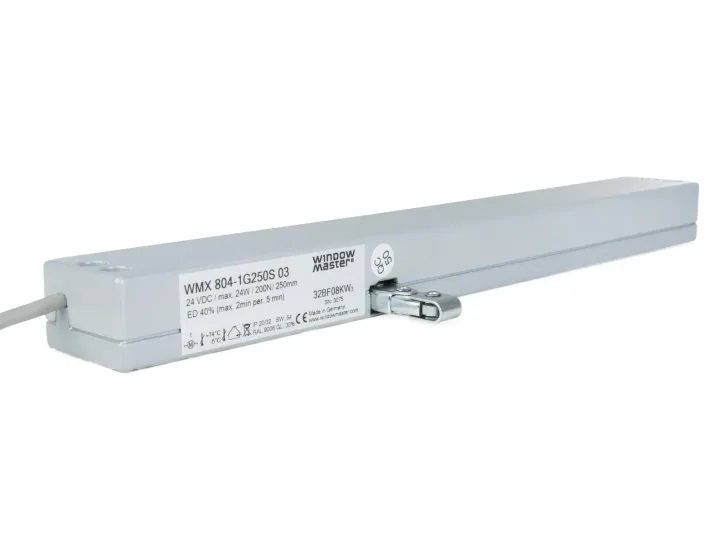

Chain actuator

  • Chain actuator for surface mounting,
  • For comfort ventilation.
  • For all window types except roof windows.

Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

Smoke ventilation
The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat

24V Nominal voltage
The product is to be connected to a ±24V power supply

MotorLink®
The product communicates with power supplies with MotorLink® – an intelligent patented digital communication from WindowMaster

Additional information

Stroke (mm)

Programmable, 50 – 250

Max Force (N)

150

Supply Voltage

24Vdc

Max Current (amps)

0.5

Max Speed (mm/s)

9.5

Locking Force (N)

3000

Window Types

Bottom Hung, Centre Pivot, Side Hung, Top Hung

IP Rating

IP20

Manufacturer

Colour/Finish

Aluminium (RAL 9006), Black (RAL 9005), White (RAL 9010)

Application

Natural Ventilation

Download PDF's

Window Master WMX 504 Data Sheet
Window Master WMX 504 installation
