Description

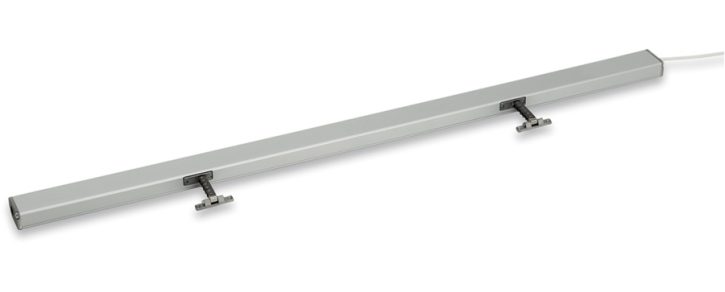

Ultraflex Control Systems Twin Quasar DC F-Signal
MAIN FEATURES:
The strongest chain actuator: 600 N. Chains in double stainless steel links.
Equipped with an integrated speed synchronization control board.
Quick and easy installation: the manual closing position regulation is not required.
The stop in closing position is regulated by an electronic limit switch control.
Electronic stop in the intermediate positions in case of overload.
TWIN QUASAR DC F-SIGNAL versions provide free potential opening and closing feedback signal (maintained contact), activated by the current limit. Suitable for combined installation with the additional locking device E-LOCK (see related data sheet under PDF downloads).
Additional information
| Stroke (mm) | 500 |
|---|---|
| Max Force (N) | 600 |
| Supply Voltage | 24Vdc |
| Max Current (amps) | 1.80 |
| Max Speed (mm/s) | 15.00 |
| Locking Force (N) | 5000 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP40 |
| Manufacturer | |
| Colour/Finish | Black (RAL 9005), Silver Anodised, White (RAL 9010) |
Brand
Ultraflex Control Systems
Product Applications
|
This product is suitable for:
 |
Ultraflex Control Systems UCS Twin Quasar DC F-Signal data sheet
