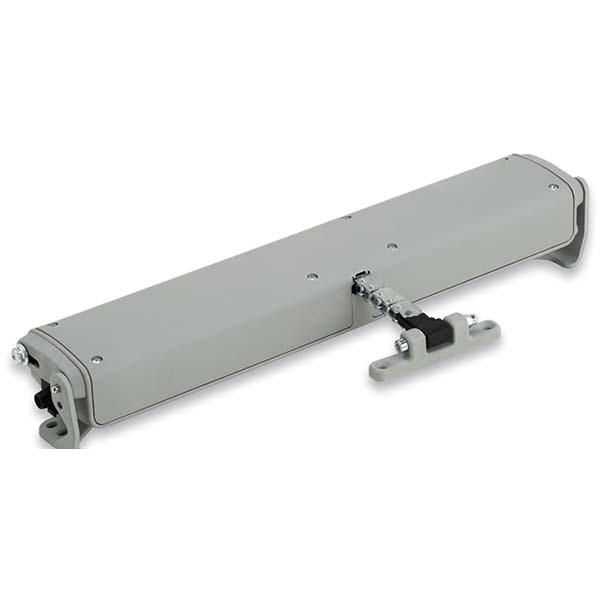

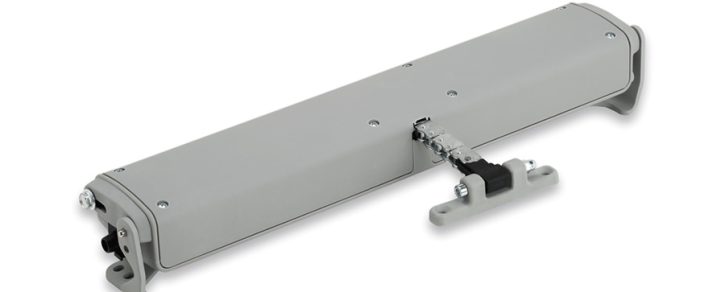

STILE RF
Brand: Ultraflex Control Systems | Manufacturer Part numbers: 41730U, 41731V, 41732W
This product is suitable for:
- Top-hung windows
- Bottom-hung windows
- Skylights, roof windows
- Pivot frames
- Cupolas
Specifications at a glance:
Traction force: 300 N
Thrust force: 300 N
Strokes: 230 / 400 MM
Protection Class: IP 20
Voltage supply: 230V AC
Colours Available:
Black |
White |
SAA |
Key Specs
| Stroke (mm) | Selectable, 230, 400 |
|---|---|
| Max Force (N) | 300 |
| Supply Voltage | 230Vac |
| Max Current (amps) | 0.8 |
| Max Speed (mm/s) | 30 |
| Locking Force (N) | 800 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP20 |
| Colour/Finish | Black, Grey, White |
| Application | Natural Ventilation |
Ultraflex Control Systems UCS STILE RF data sheet
