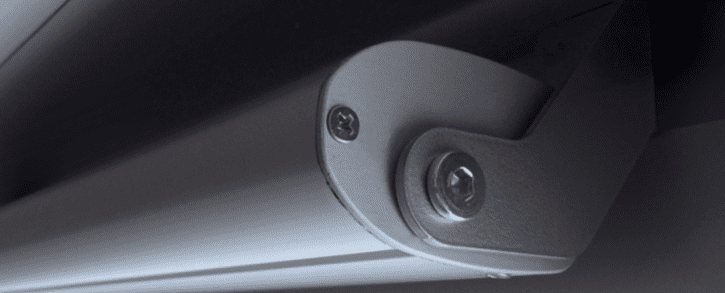

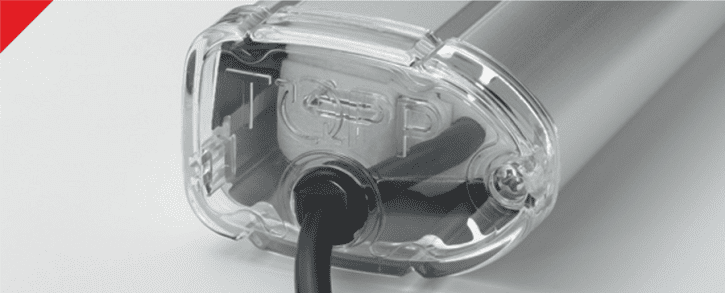

Topp C160 Chain Actuator
Electric actuator model Topp C160 with double-link chain, complete with brackets and accessories for top or bottom hung windows. Operation at 230V ~ 50Hz. Max. thrust force 300N. Stroke 360 – 600 – 1000 mm.
CE marked device.

Stroke (mm)

360
Max Force (N)

300
Supply Voltage

230Vac
Max Current (amps)

0.12
Max Speed (mm/s)

8
Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung
IP Rating

IP30
Manufacturer

Colour/Finish

Aluminium
Application

Natural Ventilation

Brand

Topp

Topp

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights
  • Cupolas
Product Applications: Bottom hung, Top hung, Cupolas, Skylights

Technical Details

Model:
C160 360
C160 600
C160 1000
Power voltage:
230V ~ 50Hz
230V ~ 50Hz
230V ~ 50Hz
Max applicable load in thrust:
300N
300N
50N
Max applicable load in traction:
200 N
200 N
85 N
Stroke for top hung application:
360 mm
600 mm
1000 mm
Stroke for bottom hung application:
322 mm
562 mm
962 mm
Absorbed current:
0,12 A
0,14 A
0,14 A
Idle translation speed:
8 mms
7,5 mms
8 mms
Duration of the idle stroke:
46 s
75 s
125 s
Service type:
S2 di 4 min
S2 di 4 min
S2 di 4 min
Operating temperature:
– 5°C + 50°C
– 5°C + 50°C
– 5°C + 50°C
Protection Class:
IP 30
IP 30
IP30
Parallel connection option:
yes
yes
yes
Window mounting adjustment:
not necessary
not necessary
not necessary
Stroke end:
Electronic in opening, by amperometric absorption in closing
Electronic in opening, by amperometric absorption in closing
Electronic in opening, by amperometric absorption in closing
