Mingardi RWA Micro L Chain

Stroke (mm)

380

Max Force (N)

350

Supply Voltage

24Vdc

Max Current (amps)

1.04

Max Speed (mm/s)

Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung

IP Rating

IP22

Colour/Finish

Black, Silver, White

Application

Natural Ventilation, Smoke Ventilation

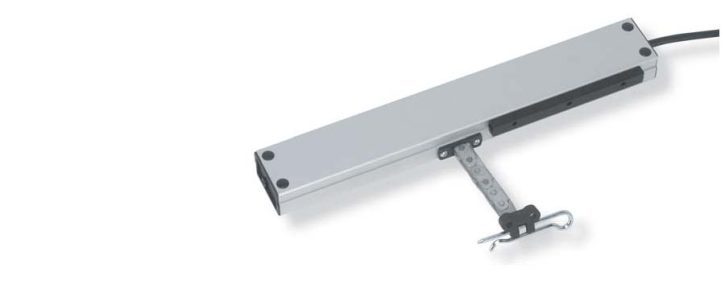

Mingardi RWA Micro L Chain – 380mm
MINGARDI linear electric actuator with reinforced double-sprocket chain inside the actuator body. Operating voltage: 230V AC 50Hz or 24V DC. In compliance with the relevant European Directives. Tested in accordance with the requirements of the European Standard EN 12101 – 2. Outfitted with electronic limit switch system for opening and closing, which can be connected in parallel.

Colours available: anodised silver (A) – anodised black (N) – RAL 9003 (B).

Stroke (mm)	380
Max Force (N)	350
Supply Voltage	24Vdc
Max Current (amps)	1.04
Max Speed (mm/s)	16
Window Types	Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung
IP Rating	IP22
Colour/Finish	Black, Silver, White
Application	Natural Ventilation, Smoke Ventilation
