Mingardi RWA Micro Evo 2

Stroke (mm)

Selectable, 150, 300, 450, 600

Max Force (N)

400

Supply Voltage

24Vdc

Max Current (amps)

1.17

Max Speed (mm/s)

Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung

IP Rating

IP32

Colour/Finish

Black, Silver, White

Application

Natural Ventilation, Smoke Ventilation

Mingardi RWA Micro Evo 2
MINGARDI electrical linear actuator with double-link chain inside the metallic casing. Equipped with overload protection and automatic end limit setting. Equipped with 4 electronically selectable strokes. Equipped with a synchronization system that coordinates the chain movement of multiple actuators (up to 4) without using any external control unit.

Mingardi RWA Micro Evo 2 Available operating voltages: 110-240V, 50-60Hz AC or 24V DC. Suitable for parallel wiring. In compliance with the relevant European Directives.

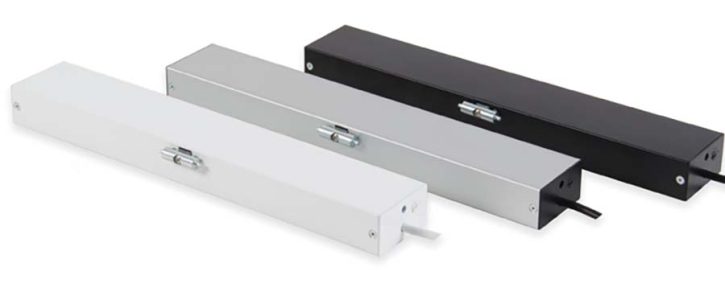

Mingardi RWA Micro Evo 2 Available version: anodized silver or painted black RAL9005 casing with black accessories and cable, White RAL9003 casing version available with white accessories and cable. To be installed on top hinged or bottom hinged windows. Tested to be installed on smoke and heat evacuation devices.

Stroke (mm)	Selectable, 150, 300, 450, 600
Max Force (N)	400
Supply Voltage	24Vdc
Max Current (amps)	1.17
Max Speed (mm/s)	15
Window Types	Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung
IP Rating	IP32
Colour/Finish	Black, Silver, White
Application	Natural Ventilation, Smoke Ventilation
