Mingardi Micro +

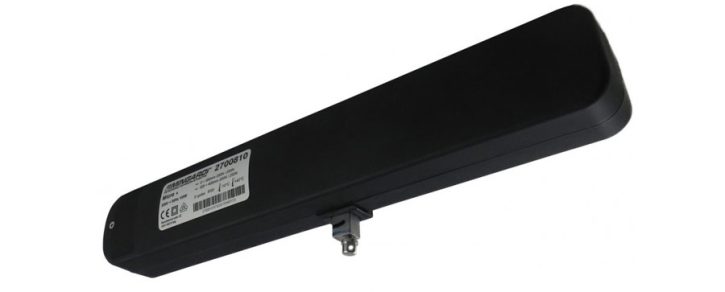

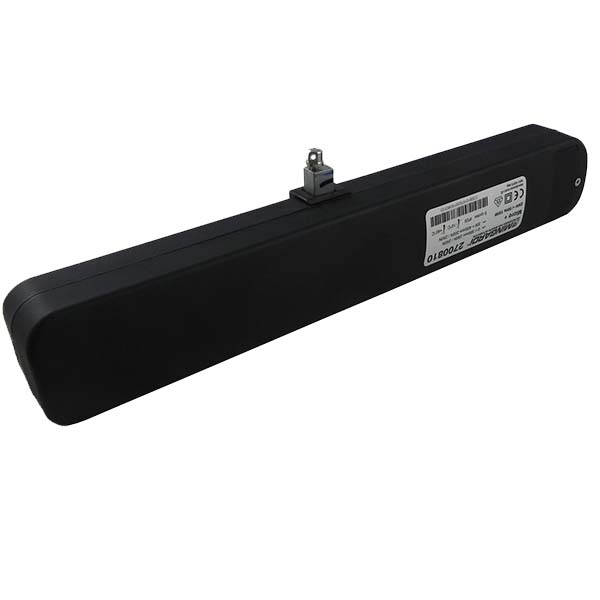

MINGARDI electric linear actuator with articulated chain movement contained inside the enclosure. Operating voltage: 230V AC 50Hz. In compliance with the relevant European Directives. Outfitted with electronic limit switch system for opening and closing. Stroke can be selected using magnet. Can be connected in parallel.

Stroke (mm)

Selectable, 400
Max Force (N)

250
Supply Voltage

230Vac
Max Current (amps)

0.58
Max Speed (mm/s)

20
Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung
IP Rating

IP20
Manufacturer

Colour/Finish

Black, Grey, White
Application

Natural Ventilation

Brand

Mingardi

Product Applications

This product is suitable for:

  • Top hung windows
  • bottom hung windows

Technical Details

Model:

Mingardi Micro +
Power Supply:

 230 V
Absorbed Power:

135 W
Min Speed:
ca. 20 mm/s
Thrust Force:

max 250 N
Stroke:

max 400 mm



Download PDF's

Mingardi Micro + Instructions

Mingardi Micro + Motor
