Description

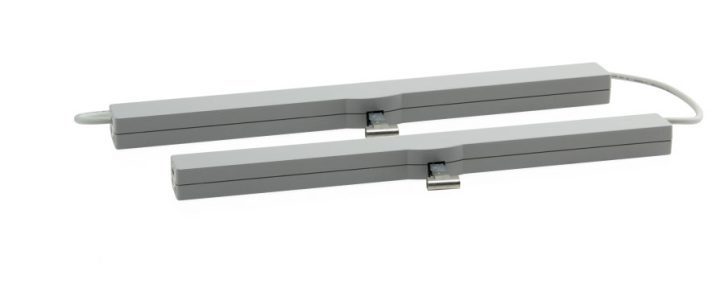

The D+H VCD 204-K-TMS+ Set includes two compact 230 V chain drives for daily ventilation. Equipped with an integrated TMS+ tandem safety cut-off for simultaneous shutdown in the event of failure or overload cut-off. Can be used without a control panel.
For façade windows, roof windows and ventilation flaps in conservatories
With motor electronics controlled via microprocessor
Direct control via 230 V AC
Special chain stabilisation and centred chain outlet
“TMS+” tandem safety function for operating 2 drives on one sash
Option of chain stroke programming via magnet
Reprogrammed opening stroke is transmitted to the tandem drive
Simple connection via plug connector
D+H VCD 204-K-TMS+ Set Programmable drive functions and different drive parameters
Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)
Additional information
| Stroke (mm) | Selectable, 350 |
|---|---|
| Max Force (N) | 200 |
| Supply Voltage | 230Vac |
| Max Current (amps) | 0.07 |
| Max Speed (mm/s) | 6.00 |
| Locking Force (N) | 2000 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP30 |
| Manufacturer | |
| Colour/Finish | Silver (RAL 9006) |
Brand
Product Applications
|
This product is suitable for:
|
VCD 204-K-TMS+ Set Instructions
