D+H KA 54-K 350K

Stroke (mm)

350

Max Force (N)

500

Supply Voltage

230Vac

Max Current (amps)

0.23

Max Speed (mm/s)

13.3

Locking Force (N)

2600

Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung

IP Rating

IP32

Colour/Finish

Silver

Application

Natural Ventilation

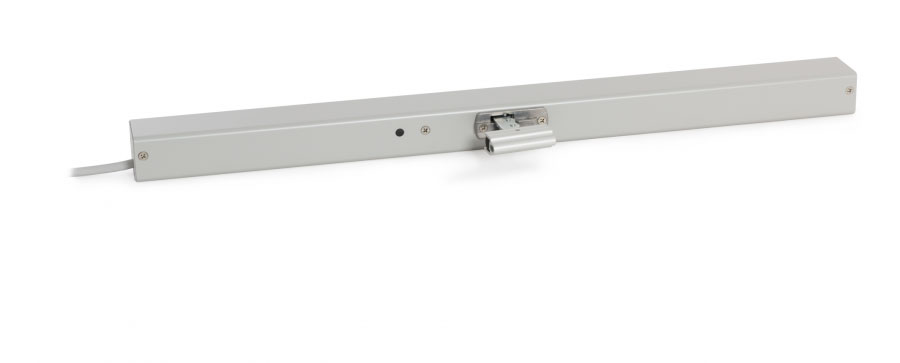

D+H KA 54-K 350K
D + H robust SHEV classic in the 230 V version: The D+H KA 54-K chain drive features outstanding reliability and durability much like the KA 54. However, it can be used without a control panel thanks to its 230 V supply.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
With motor electronics controlled via microprocessor
Direct control via 230 V AC
Special chain stabilisation
Relief of pressure on window gasket after closing process

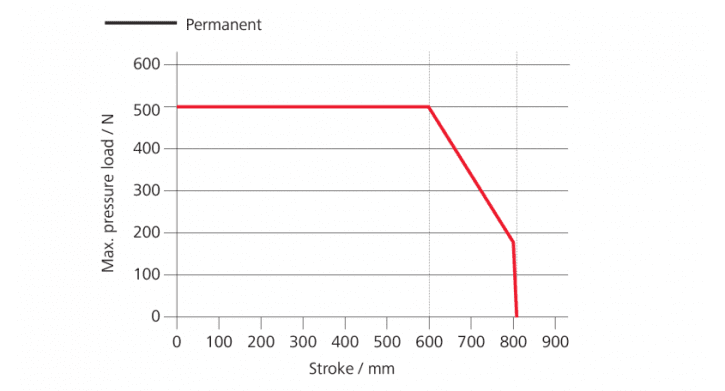

Pressure applications up to 600 mm, application tension stroke lengths >1000 mm possible
Easy window control via 230 V AC ventilation button
Adjustable electronic closing force optimisation
D+H KA 54-K 350K Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)

Stroke (mm)	350
Max Force (N)	500
Supply Voltage	230Vac
Max Current (amps)	0.23
Max Speed (mm/s)	13.3
Locking Force (N)	2600
Window Types	Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung
IP Rating	IP32
Colour/Finish	Silver
Application	Natural Ventilation
