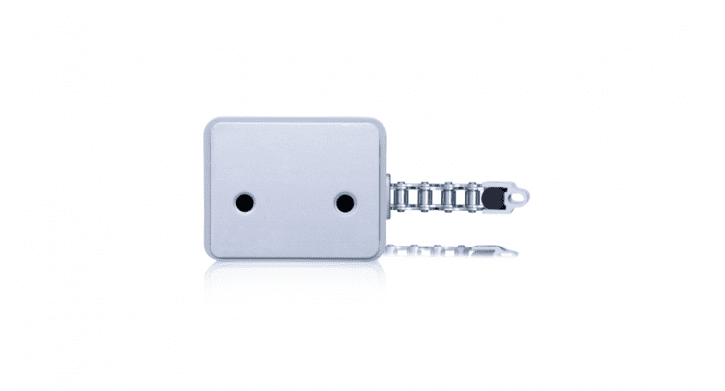

Description
Performance features
- Can be used for openings for smoke ventilation; D+H Euro SHEV in accordance with EN 12101‑2; and for daily natural ventilation
- With motor electronics controlled via microprocessor
- High‑speed function (HS) for especially fast opening windows in case of fire (SHEV)
- Special chain stabilisation

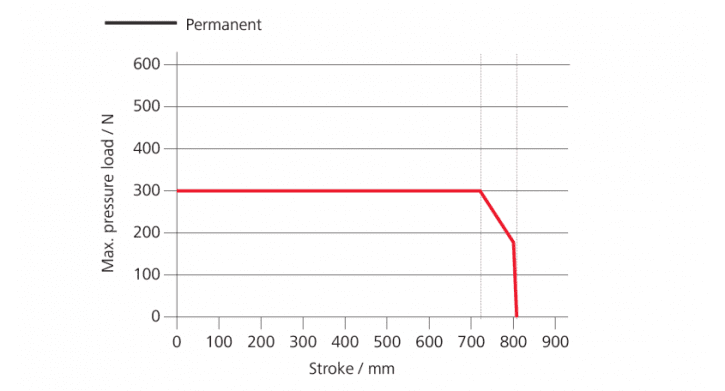

- Pressure applications up to 700 mm, application tension stroke lengths >1000 mm possible
- Relief of pressure on window gasket after closing process
- Programmable drive functions and different drive parameters
- Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
- Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)
Additional information
| Stroke (mm) | 350 |
|---|---|
| Max Force (N) | 300 |
| Supply Voltage | 24Vdc |
| Max Current (amps) | 1 |
| Max Speed (mm/s) | 12.2 |
| Locking Force (N) | 2600 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP32 |
| Manufacturer | |
| Colour/Finish | White Aluminium (RAL 9006) |
| Application | Natural Ventilation |
Brand
Product Applications
|
This product is suitable for:
|
Technical Details
Model:

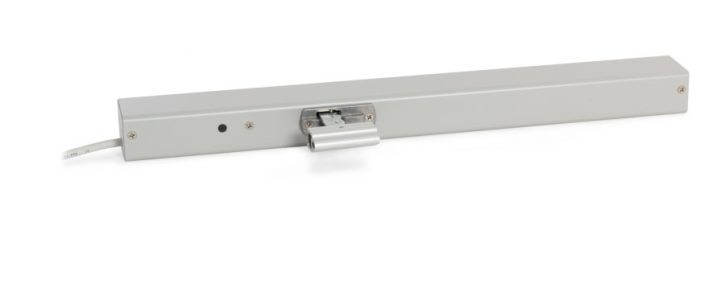

KA 34
Power Supply:
230 V AC / +10 % … -15 % / 50 Hz
Force of pressure:
300 N
Tensile force:
300 N
Nominal locking force:
2000 N
Stroke:
350 – 1300 mm
OPEN running speed:
12.1 mm/s
CLOSED running speed:
11.8 mm/s
Protection:
IP 32
Temperature range:
-5 °C … +75 °C
Connection:
2.5 m silicone cable

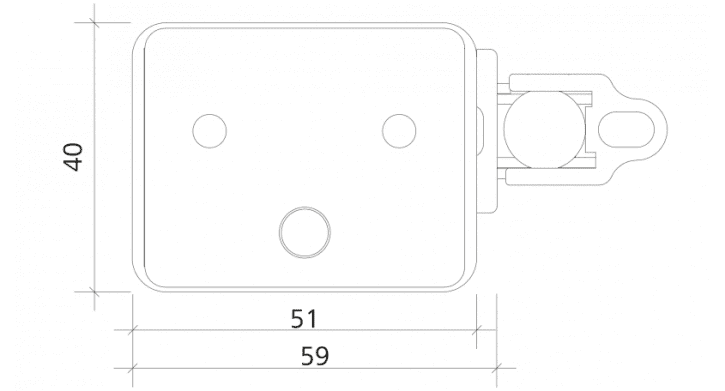

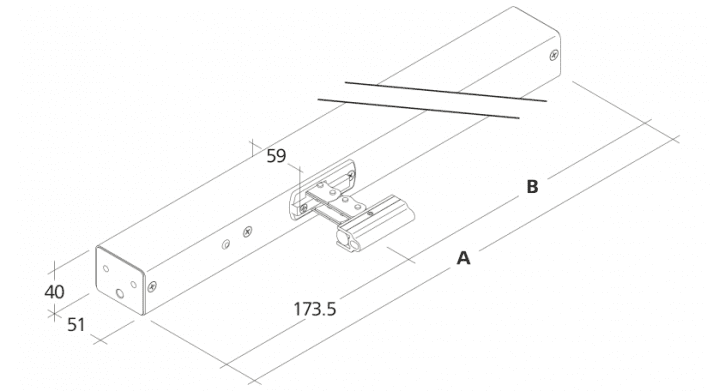

W x H x D:
A: 560 – 1041 mm – B: 248 – 729 mm
KA 34 Instructions
