CDC-TW-0502-0800-1-ACB

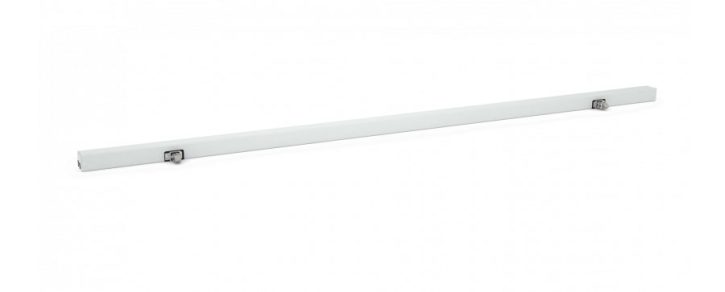

D+H CDC-TW-0502-0800-1-ACB
Double the power and a consistent load distribution on the window sash: The D+H CDC-TW-0502-0800-1-ACB features two chains, each with a stroke of 800 mm. As a result, it can open very large windows.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
Low running noises thanks to the innovative acoustic decoupling of the drive components
Two drive chains for optimal power application to the sash
Connection from either the left or the right side is possible (supply includes BUS signals)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)
Available in all RAL colours
Integrated ACB (Advanced Communication Bus) bus interface with Modbus protocol
The drive is integrated directly via open bus communication through the ACB (Advanced Communication Bus), e.g. in a building management system
