CDC-0252-0350-1-ACB

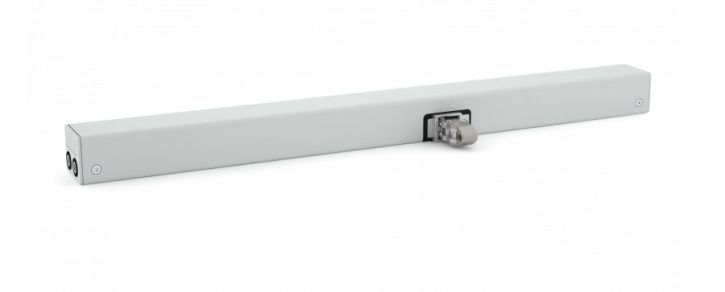

D+H CDC-0252-0350-1-ACB
Super quiet drive technology, can be integrated in the profile: The D+H CDC-0252-0350-1-ACB chain drive with the most compact design of the series features a stroke of 350 mm. Thanks to ACB bus technology, multiple drives can be activated at the same time.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
Perfectly suited for profile integrated and surface mounted installation
Low running noises thanks to the innovative acoustic decoupling of the drive components
Universal bracket sets for installation of all commonly available profile systems
Flexible overall lengths for customised strokes
Available in all RAL colours
Can be used for virtually all window opening types thanks to the left and right drive
D+H CDC-0252-0350-1-ACB Integrated ACB (Advanced Communication Bus) bus interface with Modbus protocol
The drive is integrated directly via open bus communication through the ACB (Advanced Communication Bus), e.g. in a building management system
