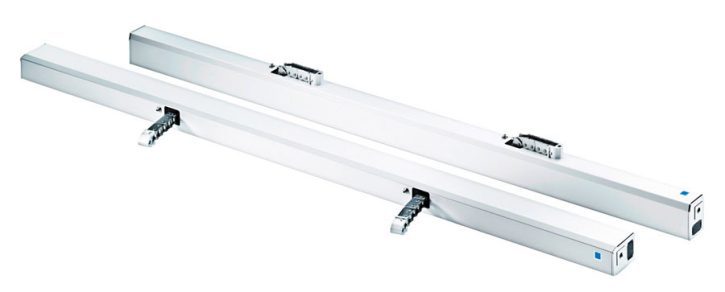

Aumuller KSA TWIN S12 24 V DC (Z)
Power, Control, Safety: large windows in roofs and facades require smart drive solutions that can always be relied upon. KSA chain drives from AUMÜLLER operate with forces of up to 1200 N. An electronic speed control system ensures smooth engine running and low noise development. The KSA TWIN or KSA D versions with two chains and double the force guarantee safety even in the most challening situations and meet the highest demands.

Efficient, esthetic and smooth running: the AUMÜLLER-Click plug-in connection solution at the end of the drive allows a quick installation as well as flexible cabling. The drive, with its symetric, chrome-plated cast aluminium covers is optimised for use in exposed areas and offers an especially quiet operation.

Additional information

Stroke (mm)

Programmable, 400, 600

Max Force (N)


Supply Voltage


Max Current (amps)


Max Speed (mm/s)


Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung

IP Rating




Anodised Aluminium



Product Applications

This product is suitable for:

  • Dome & Skylight windows
  • Top & bottom hung windows
  • Pivoting windows

Technical Details

KSA TWIN S12 24 V DC (Z)
Switch-off electronics:
S12 – intelligent, progammable control electronics
Rated Voltage:
24 V DC
Cut-Off Current:
2.4 A
400 – 600 mm; programmable
Force (Push / Pull):
1200 / 1200 N; programmable
Speed (open / closed):
max. 12.0 / 8.0 mm/s; programmable from 5.0 mm/s
Housing (W x H x L):
anodised aluminium, 56 x 40 mm, length stroke dependant
Connection Cable:
halogen free, grey, 5×0.5 mm², length 3 m
Protection Rating:
IP 30

Download PDF's

Aumuller KSA TWIN S12 24 V DC Instructions
