Description

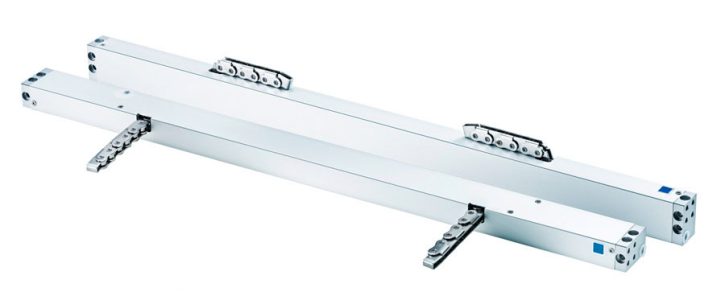

Aumuller KS2 TWIN S12 24 V DC (Z)
Chain drives from AUMÜLLER have a well-designed and robust aluminium housing. It encases the microprocessor-controlled electronics, the motor-gear unit and the chain box. The slim design allows our chain drives to lay flat on the window profile and not protrude into the room. The drives can be mounted on top or integrated into the profile. The most suitable installation locations are the frame profiles of the main or side closing edges.
The Aumuller KS2 TWIN S12 is made especially for window and facade manufacturers and installers: thanks to the microprocessor-controlled load-dependent cut-off switch, it is possible to use synchronous operation in multi-drive systems, as well as sequence controls with locking drives or object-specific special solutions, without additional modules. Special feature of the Twin models: the Z version, offers you a programmable feedback contact for “OPEN” or “CLOSED” position (max. 24V / 0.5A).
- For natural ventilation, smoke and heat exhausting systems and ferralux® NRWG (EN12101-2) Versions R (right) or L (left) or TWIN
- Aluminium housing anodized or optionally in RAL colours
- High-quality stainless steel sidebow roller chain, without protruding rivet heads
- Slim line body that suits concealed fitting within profiles
- Rigid drive mounting on frame without brackets
- Programmable parameters of Intelligent Control Electronics S12
- Synchronised multi-operation and sequence control without add. devices Electronic soft-start, soft-close and soft-stop at end of stroke control Stroke, force, speed
- Rebate control
- Suitable for operation with M-COM for the automatic configuration of synchronised run of multi drive systems and sequence control
Additional information
Stroke (mm) | Programmable, 200, 600 |
---|---|
Max Force (N) | 500 |
Supply Voltage | 24Vdc |
Max Current (amps) | 1.40 |
Max Speed (mm/s) | 12 |
Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
IP Rating | IP32 |
Manufacturer | |
Colour/Finish | Anodised Aluminium |
Brand
Aumuller
Product Applications
This product is suitable for:
|
