Aprimatic APRICOLOR VARIA Chain Operator

Stroke (mm)

Selectable, 90, 400

Max Force (N)

300

Supply Voltage

230Vac

Max Current (amps)

0.8

Max Speed (mm/s)

Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung

IP Rating

IP20

Manufacturer

Aprimatic

Colour/Finish

Black (RAL 9005), Grey (RAL 9006), White (RAL 9010)

Application

Natural Ventilation

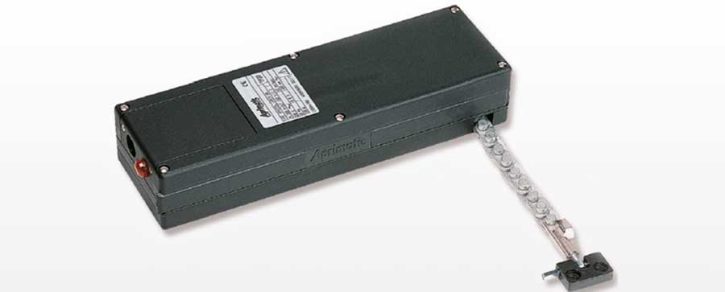

Aprimatic APRICOLOR VARIA CHAIN OPERATOR
Chain operator for bottom-hinged and outward-opening windows.
Exclusive quick-fit system securing the operator to the frame.

Aprimatic Apricolor VARIA is an electromechanical chain operator with internal nylon magazine.
It is suitable for bottom-hinged and outward-opening applications, and features an adjustable stroke from 90 to 400 mm.

230 V and 24 V operation. It can be connected in parallel. The chain is rust-proof thanks to the Dacro-met coating.

Stroke (mm)	Selectable, 90, 400
Max Force (N)	300
Supply Voltage	230Vac
Max Current (amps)	0.8
Max Speed (mm/s)	40
Window Types	Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung
IP Rating	IP20
Manufacturer	Aprimatic
Colour/Finish	Black (RAL 9005), Grey (RAL 9006), White (RAL 9010)
Application	Natural Ventilation

Brand

Aprimatic

Product Applications

This product is suitable for:

Top-hung windows
Bottom-hung windows
Side-hung windows

Technical Details

Model:

APRICOLOR VARIA

Power Supply:

230 Vca – 24 Vcc

Absorbed Power:

150 W – 40 W

Absorbed Current:

0,8A in ca/1,8 in cc

Thrust Force:

150 N

Traction Force:

300 N

Adjustable Strokes:

from 90 to 400 mm

Shifting Speed:

40 mm/s

Front Adjustment:

max. 10 mm

Parallel Connection:

Yes

Overload Protection::

100° C (only 230 V versions)

Capacitor:

4 μF

Built in Relay::

YES

Light Indicator:

Yes

Removable Terminal Board:

Yes

Protection Class:

IP20

Operator Weight:

1.7 Kg

Download PDF's

Aprimatic APRICOLOR VARIA pdf
