Description

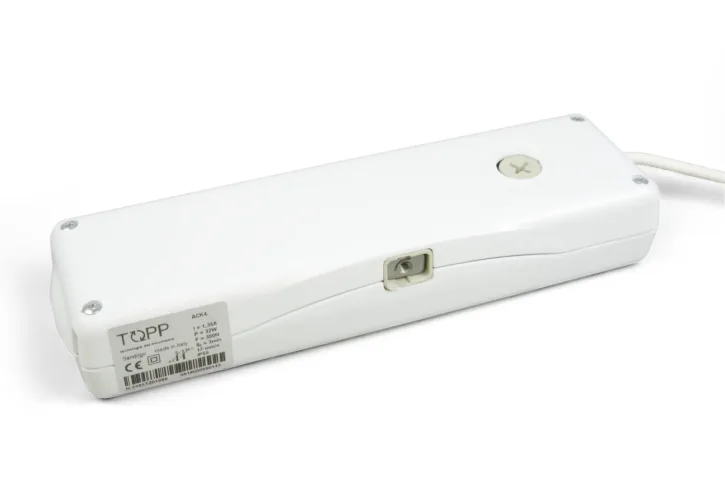

The Topp ACK4 (ACK44) chain actuator is a high-quality product featuring 300N of traction/thrust force and a double link articulated stainless steel chain. It’s enclosed in a die-cast aluminium case, making this a durable product, particularly well-suited for high use areas like schools.

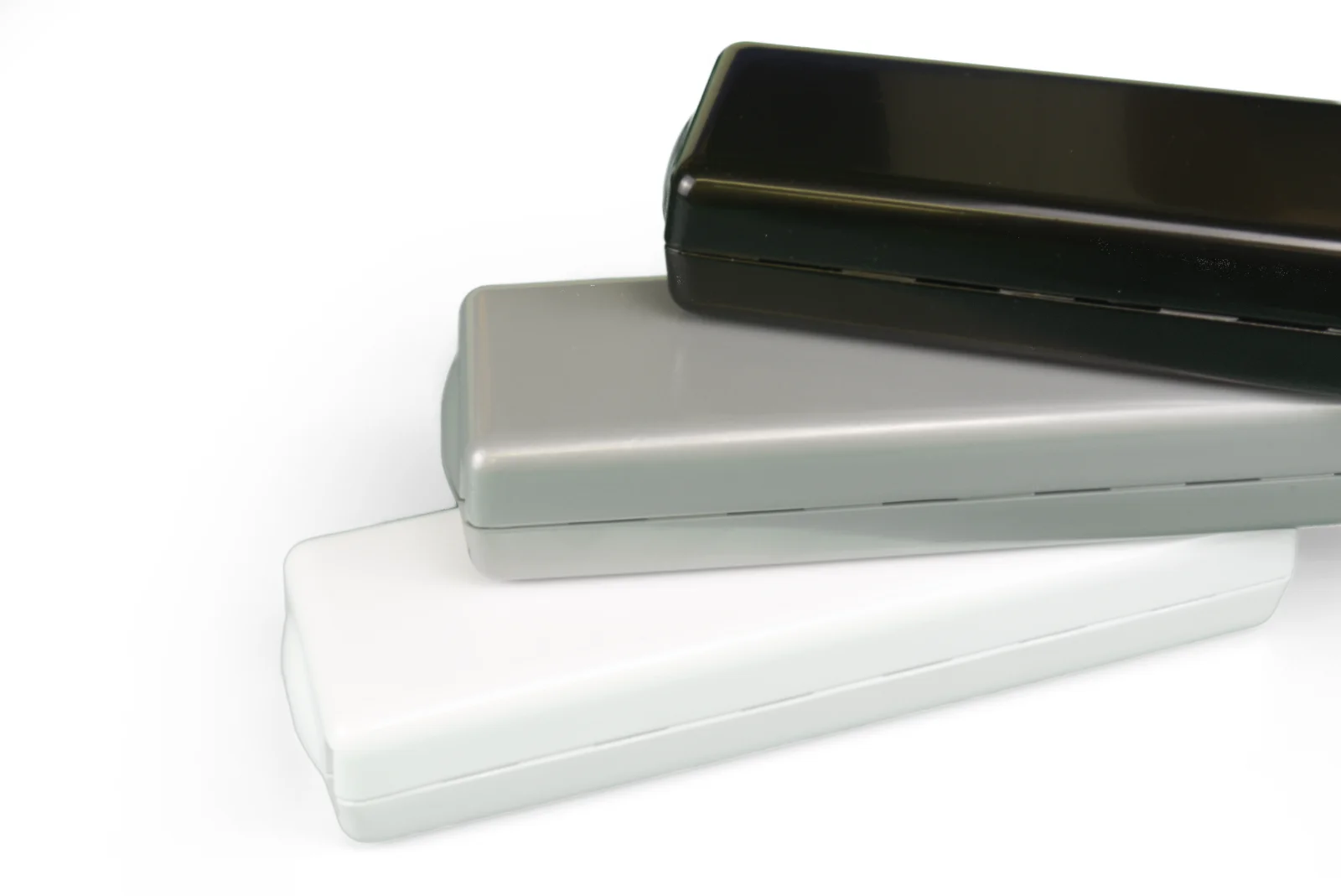

Available in standard White, Silver, and Black colours as standard, but also available unfinished, and ready to apply your own powered coat finish.
As this chain drive has a sealed motor unit and is IP55 rated, the ACK4 (ACK44) can be used in wet areas such as bathrooms or where there is a high risk of rain ingress.
The ACK4 actuator is also particularly popular in conservatories and orangeries. Combined with a temperature control panel and rain sensors, these will manage the temperature automatically all day without the worry of rain getting in when you are out of the house.
We have 1000’s of these actuators in stock in the full range of colours along with the required control options.
Applications

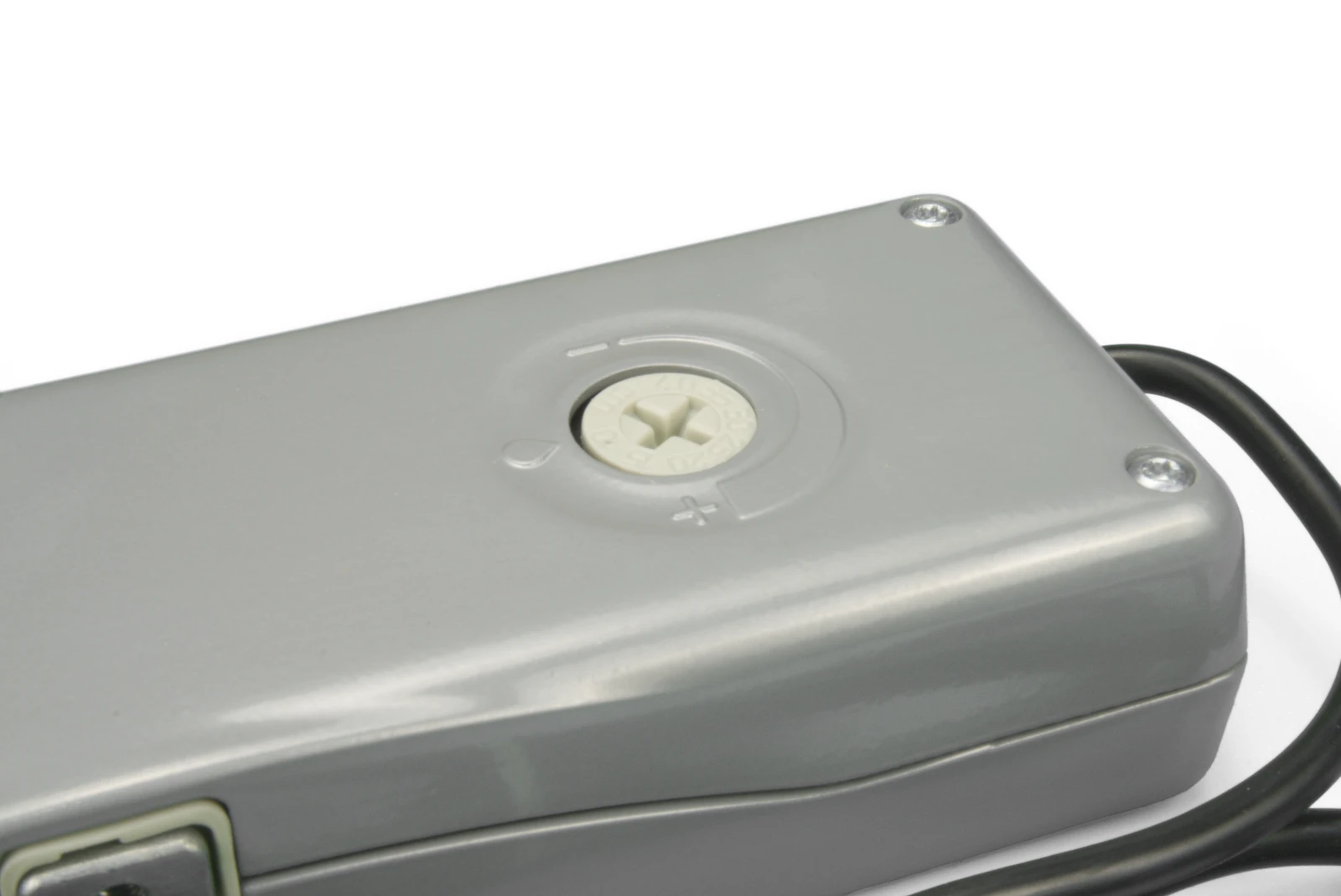

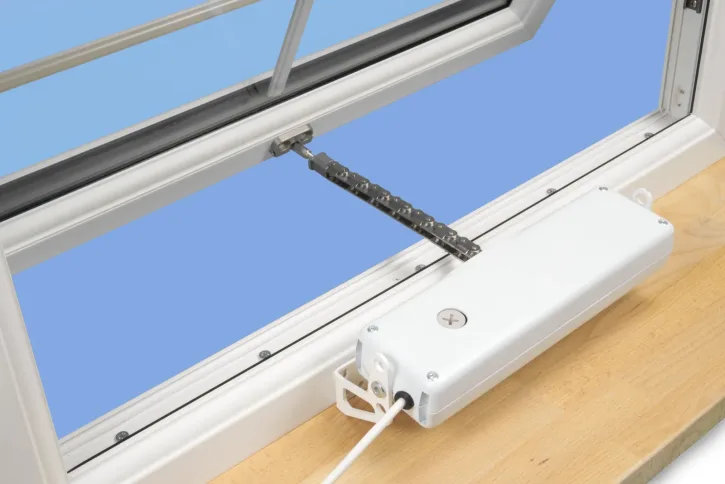

With a variety of brackets available the Topp ACK4 (ACK44) chain actuator can be mounted on almost all types of windows with easy opening adjustment in 50mm increments. A single actuator is usually suitable for windows up to 1500mm wide. For larger widows and vents a synchronous variant of the ACK4 (ACK44) can be purchased, allowing the use of two units in tandem.
Control Options
The ACK44 is a 24V DC actuator, giving you a wide array of control options like a Touchpoint Switch and Remote
Further Reading
If you’d like to know more about the ACK4, then read our ACK4 Product Focus article for a closer look at the motor and its specs. If you’re looking for a replacement for an existing window actuator, then take a look at our Replacing an ACK4 (ACK42/ACK44) Window Opener guide.
Additional information
| Stroke (mm) | Selectable, 100, 150, 200, 250, 300, 350, 400 |
|---|---|
| Max Force (N) | 300 |
| Supply Voltage | 24Vdc |
| Max Current (amps) | 1.35 |
| Max Speed (mm/s) | 17.00 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP55 |
| Manufacturer | |
| Colour/Finish | Black, Silver (RAL 9006), White (RAL 9010), Custom |
TOPP Chain actuator ACK4 details
