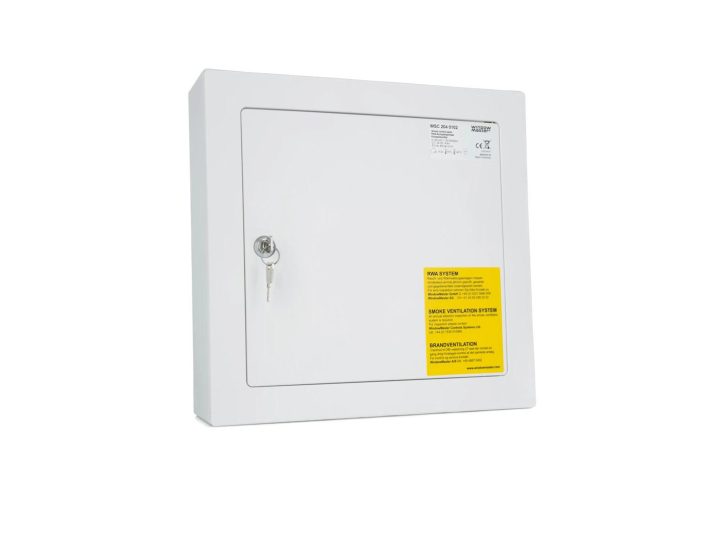

WindowMaster WSC 204

Window Master WSC 204

CompactSmoke™ 4.8A Smoke control panel – opens window actuators in case of smoke

• Compact smoke control panel
• Opens the windows actuators during smoke
• 4.8A
• 1 Smoke / comfort ventilation group

• 230V rated voltage

  The product use rated voltage 230V

• Smoke ventilation according to EN 12101-10

  The product is suitable for smoke ventilation according to EN 12101-10 and uses natural driving forces for the efficient exhaust of smoke and heat

• Output current of 4.8A

  The product have a maximum output current of 4.8A

• Natural ventilation

  The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

Compact smoke control panel for control of ±24V DC window actuators with a total power consumption up to max. 4.8A for smoke extraction and daily comfort ventilation.

The smoke control panel is especially suitable for surveillance of smaller areas, e.g. staircases, smaller sport centres and restaurants.

By linking several smoke control panels in a master/slave system, the smoke control unit can also be used in larger buildings.

The smoke control panel opens the window actuators during smoke.
The panel is supplied in plastic housing and can be either countersunk mounted or surface mounted (frame for surface mounting is supplied).
