Description

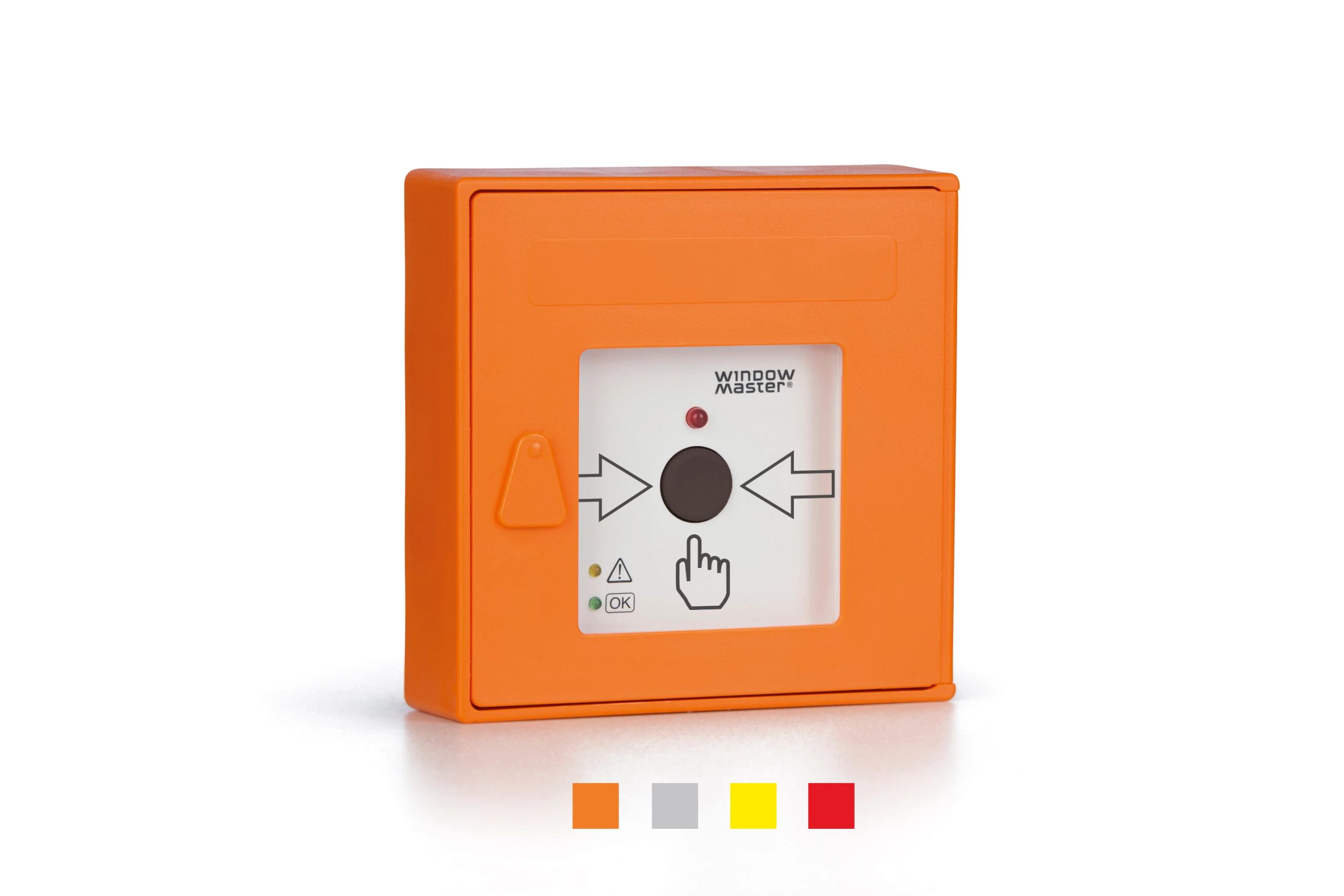

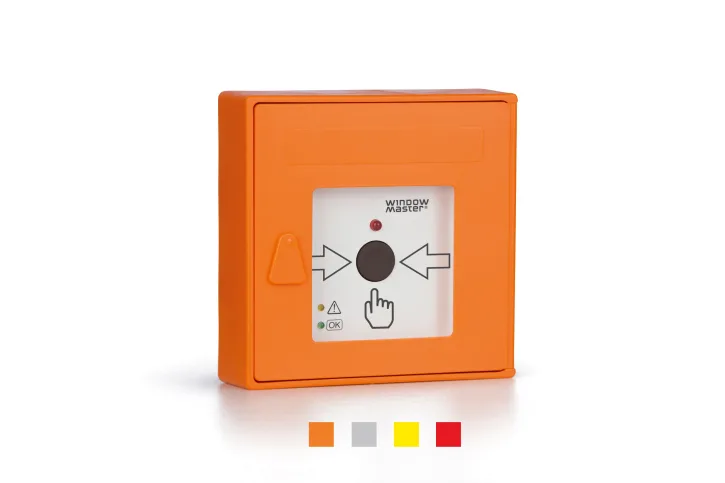

Break glass unit (primary) with an audible signal suitable for smoke control panel type WSC 204, WSC 304, WSC 308, WSC 316 and WSC 4xx.
The coloured LED indicates fire triggering or if a fault is present on the system.
Press function
- Press button for ac
- Reset button (behind the door) after activation
LED Indicator
- Red: Emergency/Alarm/Triggered condition
- Yellow: Fault condition
- Green: Operational
Acoustic signal on Emergency and Fault condition
Spare parts (glass, keys etc.) can be ordered separately.
Additional information
| Supply Voltage | 24Vdc |
|---|---|
| IP Rating | IP40 |
| Material | Plastic |
| Manufacturer | |
| Application | Smoke Ventilation |
| Colour/Finish | Grey (RAL 7035), Orange (RAL 2011), Red (RAL 3000), Yellow (RAL 1021) |
Window Master WSK 320 instructions
