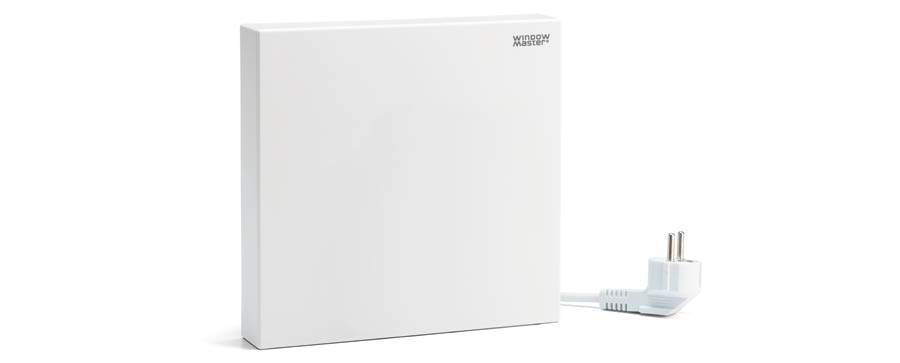

Window Master WCC 103

3A MotorController for natural ventilation in one room / zone

  • 3A
  • 1 motor line
  • Control of ±24V DC standard actuators
  • May be combined with external temperature and time automated BMS


Natural ventilation

The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

230V rated voltage

The product use rated voltage 230V

The MotorController controls (opens/closes) the window actuators based on a signal from the connected component(s) e.g. comfort keypad (operating keypad), room sensors and weather sensors.

We recommend connecting comfort keypad when sensors and other operators are connected so that users always, via the comfort keypads, can override the signals and open or close windows themselves should there be a need for more or less fresh air.

Up to 10 MotorControllers can be connected as part of a larger solution and may be connected to the same weather station. Several MotorControllers may be operated from the same comfort keypad.

The MotorController is also supplied in a 3A version with remote control for controlling the windows and a 6A version also with a remote control.

Additional information



Window Master
WindowMaster brand products

Technical Details

WCC 103
Primary voltage:
100-240 VAC 1.52A 50/60Hz
Output current::
White (RAL 9016)
215 x 206 x 37mm (WxHxD)

Download PDF's

Window Master WCC 103 Data Sheet

Window Master WCC 103 installation
