Description

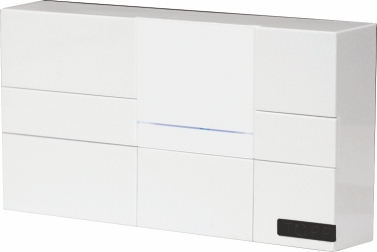

Topp TFRR Control Unit
Control and feeding unit with 2 outputs at 24V and 1 output at 230V, max. 1,5A each.

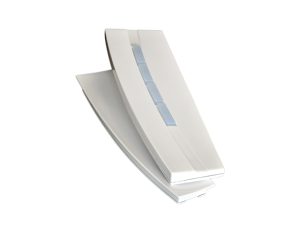

Provided with remote control receiver, either at 433,92 MHz or infra-red.
Input for one RW wind sensor with adjustable speed threshold via trimmer.
TFRR control units feed and control 24V or 230V TOPP actuators.
Built-in radio receiver at 433,92 MHz. Pre-set for RW wind sensor and RDC 12V rain sensor. CE marked device.
Additional information
| Manufacturer |
|---|
Brand
Topp
Technical Details
Model:
TFRR
Power voltage:
230V ~ 50Hz
Output Voltage:
230V ~ 50Hz
Max power consumption:
300 W
Pre-set for:
wind sensor, rain detector, push button
Max absorbed current:
1,3 A
Operating temperature:
– 5°C + 50°C
Dimensions:
87x53x32mm
Connectable actuators C20:
6
Connectable actuators C20 TANDEM:
3
Connectable actuators C30:
4
Connectable actuators C40:
5
Connectable actuators C60:
6
Connectable actuators ACK4:
4
Connectable actuators C130:
6
Connectable actuators C160:
6 (Except 1000 mm stroke.)
Connectable actuators C240:
3
Connectable actuators C260:
3
Connectable actuators S80:
4
Connectable actuators T50:
4
TOPP Control units TF RR instructions
