Description

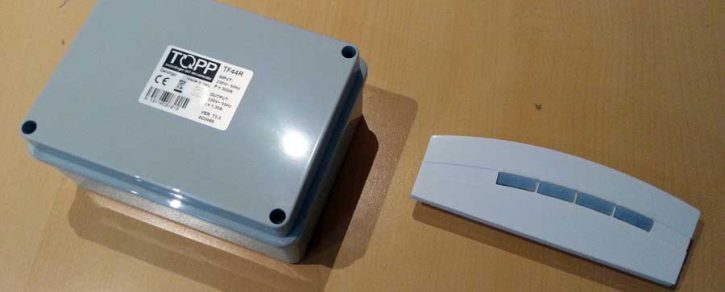

Topp TF24R Control Unit

Control and feeding unit with 2 outputs at 24V and 1 output at 230V, max. 1,5A each.

Provided with remote control receiver, either at 433,92 MHz or infra-red.

Input for one RW wind sensor with adjustable speed threshold via trimmer.

TF44R control units feed and control 24V or 230V TOPP actuators.
Built-in radio receiver at 433,92 MHz. Pre-set for RW wind sensor and RDC 12V rain sensor. CE marked device.

Additional information

Manufacturer

Brand

Topp
Topp

Technical Details



Model:

TF44R
Power voltage:

230V ~ 50Hz
Output Voltage:

230V ~ 50Hz
Max power consumption:

300 W
Pre-set for:
wind sensor, rain detector, push button
Max absorbed current:

1,3 A
Operating temperature:

– 5°C + 50°C
Service Type:

 S1–continuous
Dimensions:

160x120x75mm
Connectable actuators C20:

16*
Connectable actuators C20 TANDEM:

8*
Connectable actuators C30:

16*
Connectable actuators C40:

20*
Connectable actuators C60:

6*
Connectable actuators ACK4:

16*
Connectable actuators C130:

16*
Connectable actuators C160:

6*
Connectable actuators C240:

8*
Connectable actuators C260:

16*
Connectable actuators S80:

16* ***
Connectable actuators T50:

16*

* Motors must be equally located on the four feeding unit outputs, which implies a 1 minute delay between 2 consecutive commands.

*** Max. 400 mm stroke.

Download PDF's

TOPP Control units TF44R instructions
