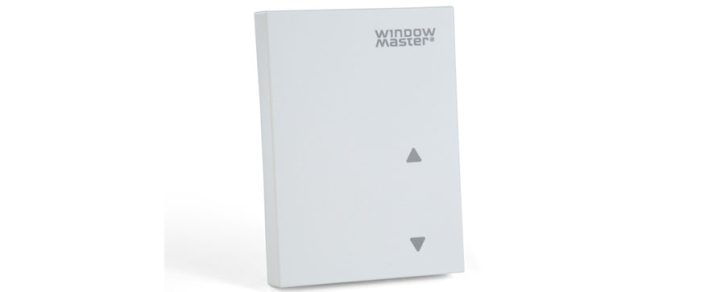

Window Master WWS 100

NV Embedded® Sensor

  • Indoor room sensor
  • Used for measuring the air quality by means of temperature, CO2-level and relative humidity measurements
  • To be used in NV Embedded® solutions


Natural ventilation

The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate


In addition to sensor functionalities, the unit also has a push-button for simultaneous operation of all windows or selected motor groups in the room/zone; e.g. Close or open all windows.

Typically, one sensor per room/zone is used but multiple sensors can be used in the same room/zone if e.g. minimum, maximum and mean values are requested.

The sensor is connected to a MotorController type WCC 310 PLUS or WCC 320 Plus via WSK-Link.

Additional information



Window Master
WindowMaster brand products

Technical Details

WWS 100
83 x 114 x 24 mm (WxHxD)
studio white (similar to RAL 9016)
114 g
Power Supply:
via WSK-Link™
CO2 accuracy:
±150 ppm during its lifetime by 25°C and 950 – 1050 hPa
Humidity, relative:
1 – 100% ±3% at 25°C
Temperature measurement:
0°C – 50°C, ±0.5°C at 25°C og ±1°C at 0..50°C

Download PDF's

Window Master WWS 100 Data Sheet

Window Master WWS 100 Data Sheet
