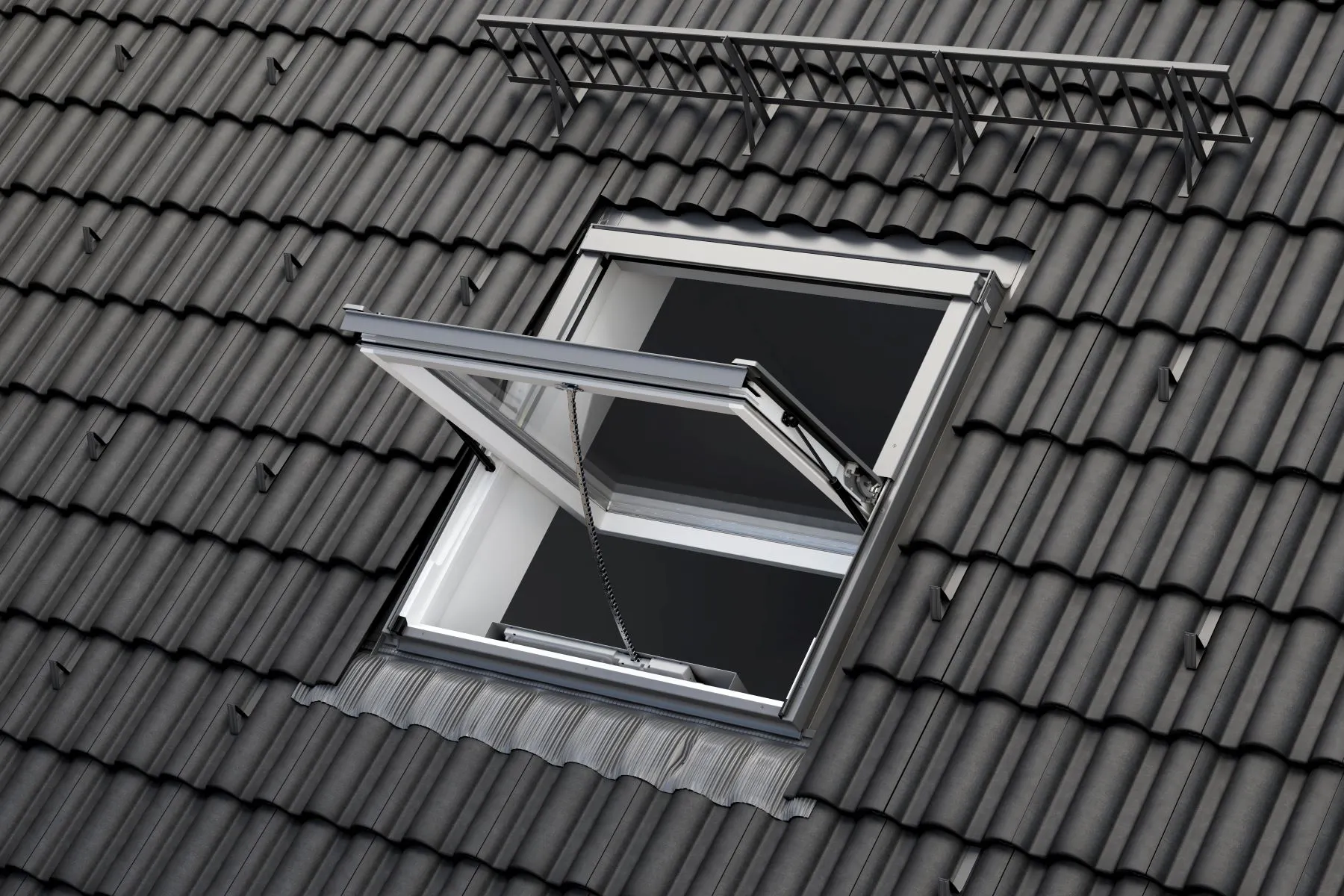

Pitched roof skylight AOVs are widely used at the head of protected stairwells, and adjacent corridors to provide smoke and heat exhaust ventilation and keep the evacuation route clear for building occupants. There are several standardized size configurations for a variety of joist layouts and sizes. They are sold with flashing kits to suit slate, concrete and plain tiles.
- 10-year warranty on installation, plus an additional 10 years when registering the product
- 2-year warranty on actuators and gas struts
- EN 12101-2 certified
- Great thermal efficiency
- Lots of sizes available
Size and Customisation Options
- Square and Rectangular sizes from 780W x 980H to 1340W x 1400H
- Common sizes are 1m² (1140x1180mm) or 1.5m² (1340x1400mm) GFA (Geometric Free Vent Area)
- 24mm Toughened & Laminated Low-E Double Glazing
- Low u-values – Uw 1.3W/m2K
- Centre pivoting – allowing superior geometric opening area
- Wind deflector option for boosted aerodynamic free area performance
- Flashing kits to suit common roof tile types
