Window Master WMU 836

By: Joseph

Brand: Window Master | Manufacturer Part numbers: WMU 836

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights, roof windows
  • Pivot frames
  • Cupolas
Specifications at a glance:

Traction force:  300 N
Thrust force:  Max 300 N
Strokes:  400, 600, 800 and 1000mm
Protection Class:  IP 54
Voltage supply: 24v DC

Colours Available:

Available in Silver Anodised
SAA


Bracket Options:
Get in touch for help picking the right brackets for your window.

NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Description

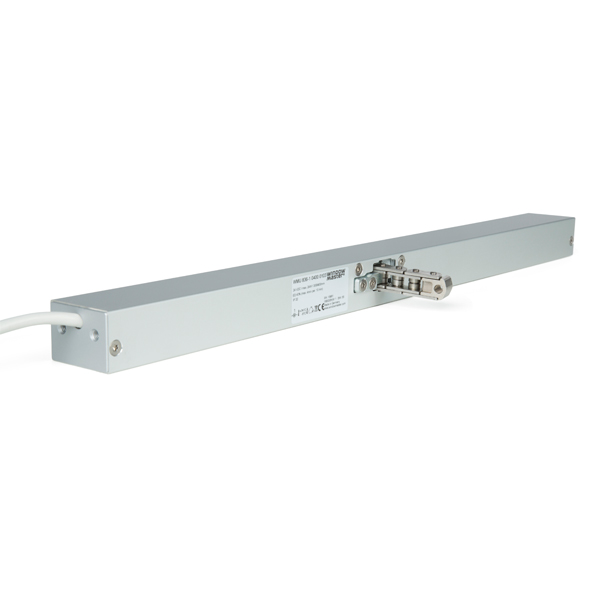

Chain actuator 300N

Chain actuator for surface mounting.
For smoke and comfort ventilation.

24V Nominal voltage
The product is to be connected to a ±24V power supply

Smoke ventilation according to EN 12101-2
The product is suitable for smoke ventilation according to EN 12101-2 and uses natural driving forces for the efficient exhaust of smoke and heat

MotorLink®
The product communicates with power supplies with MotorLink® – an intelligent patented digital communication from WindowMaster

UL certified
The product is UL certified according to UL325 for US and CSA C22.2 no.247-14 for Canada

Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

The actuator is a high performance actuator especially designed for large and heavy windows – an elegant alternative to spindle actuators.

Complete opening of the window within 60sec. (depending on the programming).
The actuator is approved according to EN 12101-2 with selected profiles – please contact WindowMaster for further information.

Programmable 24VDC chain actuator for surface mounting for smoke and comfort ventilation.

For top hung, bottom hung, pivot and turning windows.
The actuator can be used together with espagnolette WMB.

The actuator is approved according to EN 12101-2 with selected profiles – please contact WindowMaster for further information

The electronics in this actuator can be programmed to suit specific requirements – i.e. pressure- and traction force, stroke, speed/sound level – with the WAT 100 programming box, also possible following installation.
Actuators for USA and Canada are UL certified and are supplied without cable.

Actuator and chain brackets to be ordered separately.

Buy Now

Free Live Product Support - help finding window opener products

Order Now by Phone

The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.

To Order Dial: 01702 826 267

Brand

Window Master
WindowMaster brand products

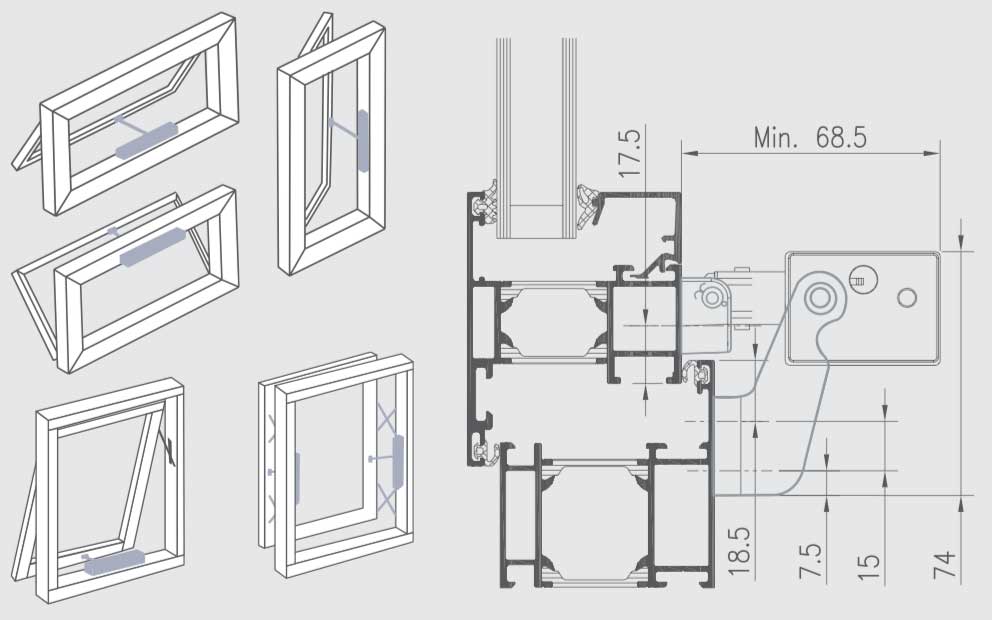

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

WMU 836

Nominal voltage:

24V DC (max. 10% ripple)

Traction force:

300 N

Thrust force:

Max. 300N

Stroke:

400, 600, 800 and 1000mm

Locking Force:

3000 N

Current Consumption:

1A

Opening speed:

11mm/s

Operating temperature:

-5°C – +74 °C max. 90% relative humidity (not condensing)

Protection Class:

IP32

Download PDF's

Window Master WMU 836 instructions
Window Master WMU 836 installation
