Description
for smoke and comfort ventilation
locking actuator for windows with espagnolette system
to be surface mounted or concealed
discreet and slim line design
cable connection hidden in the actuator cavity – no need for junction box
to be used together with ±24V control units or control units with MotorLink®
used together with window actuators with MotorLink®
3 speeds when using control unit with MotorLink®
soft close
the electronics in this actuator can be programmed to suit specific requirements – i.e. pressure- and traction force, stroke – with the WAT 100 programming box, also possible following installation
built-in electronic load switch-off/end stop
electronic actuator with micro controller
easy mounting
the actuator is UL certified

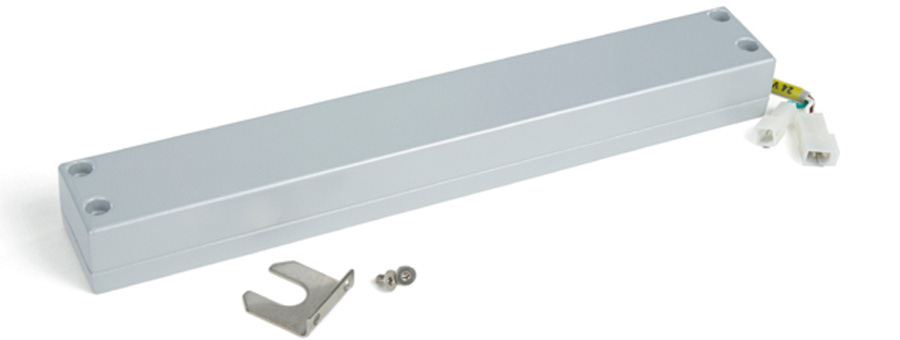

Compact 24 VDC espagnolette, which automatically locks/ opens the espagnolette system on the window, in such a way that the CE approval of the window is maintained. This unit can also be used should increased protection against weather or break in be desired.
Closing force of 2000N per espagnolette.
The espagnolette is fitted on windows with an espagnolette system without handles, together with electric window actuators with MotorLink®. The espagnolette can be surface
mounted on or concealed in aluminium, timber or plastic window frames.
The espagnolette system can be set in two positions: locked/open.
The espagnolette bracket can be fitted in two different positions and thereby adjusted to the window profile. The bracket is supplied with the espagnolette.
