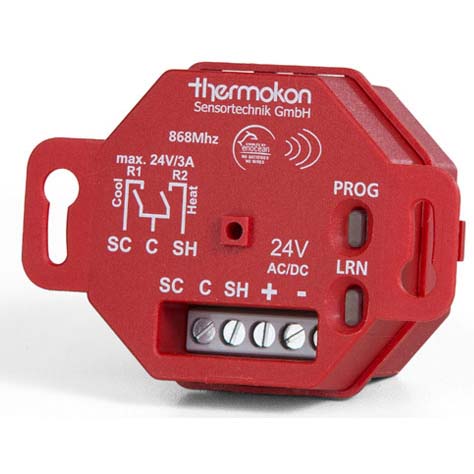

Window Master WSK Thermokon – 1510683

By: Joseph

Brand: Window Master | Manufacturer Part numbers: WSK Thermokon – 1510683

Keypad – wireless – receiver

Specifications at a glance:

IP rating: IP20
Size: 71 x 48 x 35mm (WxHxD)

Colours Available:


Bracket Options:
Get in touch for help picking the right brackets for your window.

NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Description

Keypad – wireless – receiver

  • Receiver
  • Used for ‘WSK Thermokon wireless keypad’ and ‘WSK Thermokon remote control’



Natural ventilation

The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate



Smoke ventilation

The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat

The ventilation keypad and remote control are used for the manual opening and closing of electrically operated windows, smoke vents or light domes. The receiver, which receive signals from the keypad and remote control, can be connected to all WindowMaster control units and smoke ventilation panels. The ventilation keypad signal and the remote control signal have second priority in the smoke unit, meaning the signals from smoke detectors, smoke ventilation switches and external smoke alarm units have first priority.

The receiver can receive up to 10 identical signals and thus can up to 10 keypads/remote controls be connected to the receiver. Is there more than one type of signal two receivers are to be used.



The receiver has three options for operating the open / close / stop function on the keypad and remote control:Option 1 (preset):

Long press: opens/closes the actuators in the preset operation time or until stop is pressed
Short press: closing

Option 2:
Short press: opens/closes the actuators in the preset operation time or until stop is pressed
Short press: closing

Option 3 (deadman function):
Opens/closes the actuators as long as the button is pressed, but no longer that the preset operation time.

Buy Now

Free Live Product Support - help finding window opener products

Order Now by Phone

The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.

To Order Dial: 01702 826 267

Brand

Window Master
WindowMaster brand products

Technical Details

Model:

WSK Thermokon – 1510683

Supply voltage:

24V from WindowMaster control unit or smoke ventilation panel

Standby consumption:

1.5W

IP rating:

IP20

Mounting:

Screwed onto flat surface
The receiver can also be hidden in a box (not supplied by WindowMaster)

Material:

ABS

Size:

71 x 48 x 35mm (WxHxD)

Colour:

Red

Download PDF's

Window Master WSK Thermokon – 1510683 installation

Window Master WSK Thermokon – 1510683 Product Sheet
