Product Information
Description

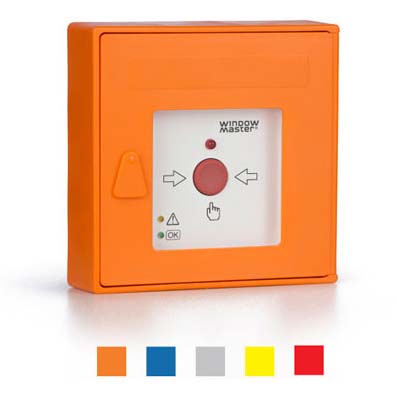

Window Master WSK 321 Break Glass Unit
Break glass unit (primary), plastic housing, with connections for components
- Primary break glass unit
- With an audible signal
- Plastic housing
Smoke ventilation
The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat
Primary glass break unit, plastic housing, for manual activation of smoke ventilation system.
The glass break unit is suitable for smoke ventilation panels type WSC 310, WSC 320, WSC 520, WSC 540, WSC 560.
Smoke detector and keypads can be connected directly to the break glass unit – this saves cabling.
Break glass unit with:
- data communication (break glass unit bus)
- connection for smoke detector and keypads
- an audible signal – when opening the door the signal will be interrupted.
- coloured LEDs for indicating fire triggering or if a fault is present on the system
Spare parts (glass, keys etc.) can be ordered separately.
Additional information
| Manufacturer |
|---|
Brand
Window Master
Technical Details
Model:
WSK 321
Data communication:
Break glass unit bus
Housing:
Plastic
Size: between MotorController and remote control:
125 x 125 x 36mm (WxHxD)
Colour:

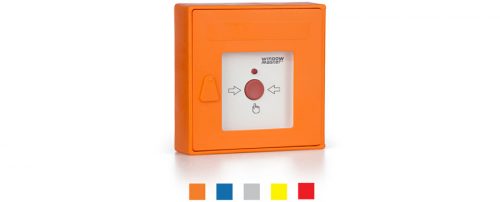

Red, orange, yellow, grey or blue
Window Master WSK 321 instructions
