Product Information

Description

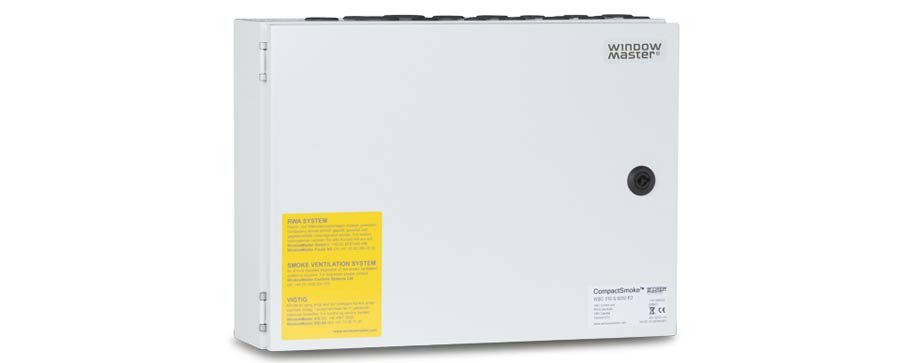

Window Master WSC 310 Standard

CompactSmoke 10A  smoke control panel with DIP switches for configuration of smoke and natural ventilation in up to 2 rooms / zones

  • Compact smoke control panel
  • 10A
  • 2 smoke / 2 comfort ventilation groups



Output current of 10A

The product have a maximum output current of 10A

230V rated voltage

The product use rated voltage 230V

Smoke ventilation according to EN 12101-10

The product is suitable for smoke ventilation according to EN 12101-10 and uses natural driving forces for the efficient exhaust of smoke and heat

MotorLink®

The product communicates with power supplies with MotorLink® – an intelligent patented digital communication from WindowMaster

Natural ventilation

The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate



Smoke control panel for smoke and comfort ventilation
Compact smoke control panel WSC 310 STANDARD and WSC 320 STANDARD for control of ±24V DC window actuators with a total power consumption up to max. 10A  for smoke extraction and daily comfort ventilation.
The panel can be used in small and medium sized buildings as well as in building sections e.g. stair cases and restaurants.

The panel has
– 2 smoke / 2 daily ventilation groups
– 10A

DIP switches
The panel is configured on DIP switches.

CompactSmoke WSC 310 gives the possibility of up to actuator speeds depending of the type of connected actuator:

The different speeds
H&S: a fast speed with H&S ventilation and security functions.
H&S has always first priority.
Comfort ventilation: a medium fast speed by comfort ventilation

Ease of cabling
The use of bus technology for the break glass units means that the need for cabling in the building is significantly reduced.

Certification
Approved and certified according to EN 12101-10.

Additional information

Manufacturer

Brand

Window Master
WindowMaster brand products

Download PDF's

Window Master WSC 310 installation

WSC 310 Standard Data Sheet
