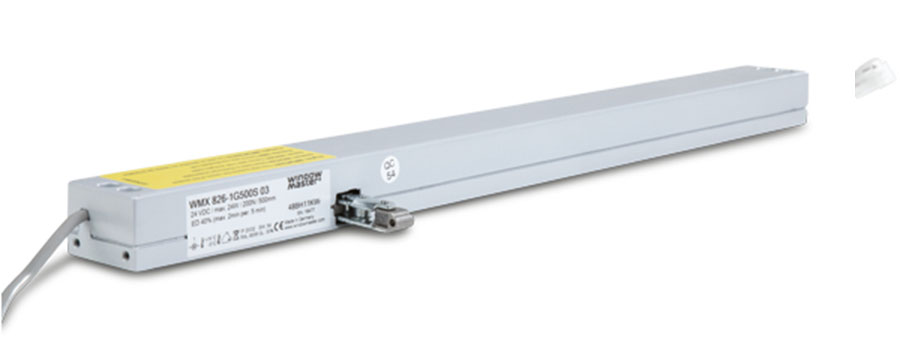

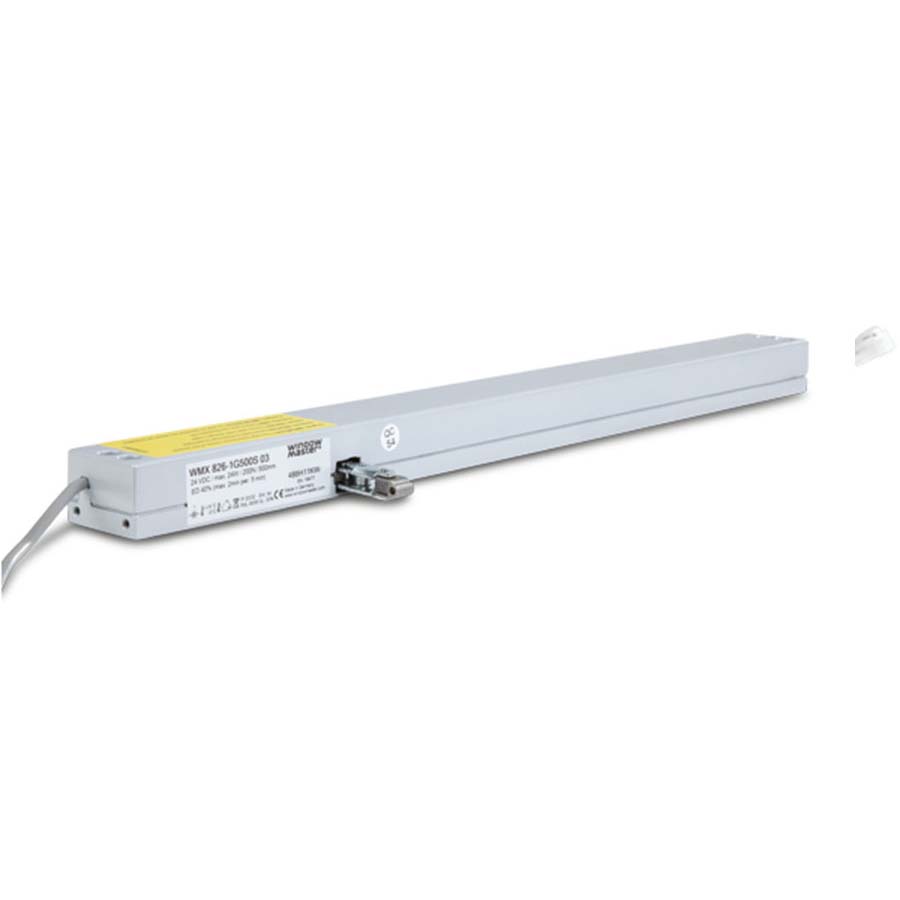

Window Master WMX 826

By: Joseph

Brand: Window Master | Manufacturer Part numbers: WMX 826

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivot frames
Specifications at a glance:

Traction force:  200 N
Protection Class: Surface mounted: IP 20, concealed: IP 32
Voltage supply: 24v DC

Colours Available:

Available in White
White
Available in Silver Anodised
SAA


Bracket Options:
Get in touch for help picking the right brackets for your window.

NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Description

Chain actuator 200N

  • Chain actuator for surface mounting.
  • For smoke and comfort ventilation.

Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

Smoke ventilation
The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat

24V Nominal voltage
The product is to be connected to a ±24V power supply

MotorLink®
The product communicates with power supplies with MotorLink® – an intelligent patented digital communication from WindowMaster

UL certified
The product is UL certified according to UL325 for US and CSA C22.2 no.247-14 for Canada

Programmable 24V DC chain actuator for surface mounting for smoke and comfort ventilation.
To be used with top hung, bottom hung and turning windows.

Description
– to be used together with ±24V control units or control units with MotorLink®
– can be used together with espagnolette WMB
– external safety edge can be connected directly to the actuator (actuator version ’E’)
– available with and without UL certification:
– Europe: order without UL certification (version 0)
– USA / Canada: order with UL certification (version U)
– synchronisation of up to four window actuators – no need for an external synchronisation module
– genuine position feedback and three speeds when using control unit with MotorLink®
– soft close
– the electronics in this actuator can be programmed to suit specific requirements
– i.e. pressure- and traction force, stroke, speed/sound level – with the WAT 100 programming box, also possible following installation
– built-in electronic load switch-off/end stop
– electronic actuator with micro controller
– the actuator has an integrated reverse function to ensure a prolonged life span of the window gaskets
– easy mounting

Buy Now

Free Live Product Support - help finding window opener products

Order Now by Phone

The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.

To Order Dial: 01702 826 267

Brand

Window Master
WindowMaster brand products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows



Technical Details

Model:

WMX 826

Nominal voltage:

24V DC (max. 10% ripple)

Traction force:

200N

Chain Opening:

50 – 500 mm in increments of 10 mm, maximum opening depends on the window construction

Speed:

9mm/s (programmable 3 – 9mm/s)

Locking Force:

3000 N

Current Consumption:

max. 1A

Switch on Duration:

ED 40% (max. 4 min. per 10 min)

Operating temperature:

-5°C – +74 °C max. 90% relative humidity (not condensing)

Protection Class:

Surface mounted: IP 20, concealed: IP 32
