WMX 526

Description

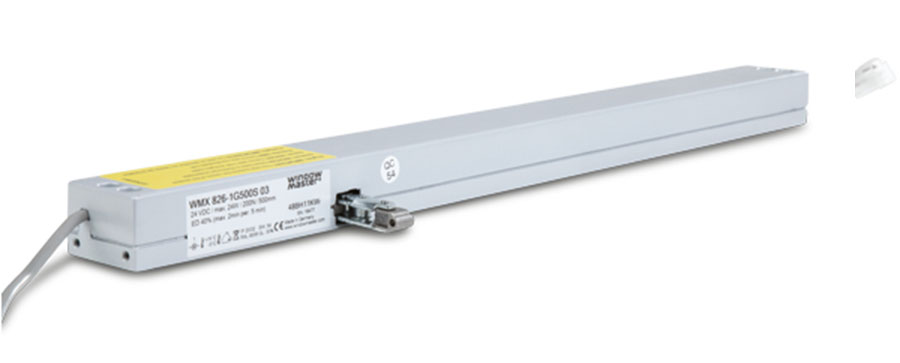

Window Master WMX 526

Chain actuator 200N

• Chain actuator for surface mounting.
• For smoke and comfort ventilation.

Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

Smoke ventilation
The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat

24V Nominal voltage
The product is to be connected to a ±24V power supply

MotorLink®
The product communicates with power supplies with MotorLink® – an intelligent patented digital communication from WindowMaster

UL certified
The product is UL certified according to UL325 for US and CSA C22.2 no.247-14 for Canada

Programmable 24V DC chain actuator for surface mounting for smoke and comfort ventilation.
To be used with top hung, bottom hung and turning windows.

Description
– to be used together with ±24V control units or control units with MotorLink®
– can be used together with espagnolette WMB
– external safety edge can be connected directly to the actuator (actuator version ’E’)
– available with and without UL certification:
– Europe: order without UL certification (version 0)
– USA / Canada: order with UL certification (version U)
– synchronisation of up to four window actuators – no need for an external synchronisation module
– genuine position feedback and three speeds when using control unit with MotorLink®
– soft close
– the electronics in this actuator can be programmed to suit specific requirements
– i.e. pressure- and traction force, stroke, speed/sound level – with the WAT 100 programming box, also possible following installation
– built-in electronic load switch-off/end stop
– electronic actuator with micro controller
– the actuator has an integrated reverse function to ensure a prolonged life span of the window gaskets
– easy mounting
