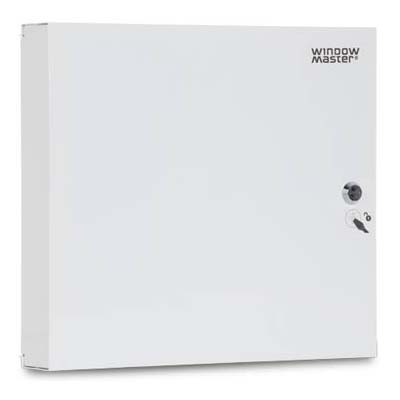

Window Master WCC 320 Standard UL

Call us for latest pricing

Brand: Window Master | Manufacturer Part numbers: WCC 320 Standard UL

Controller

Specifications at a glance:

Primary voltage: 120V AC, 60Hz (85-264V AC, 47-63Hz)

Output current: WCC 320 Standard UL: 20A

Colours Available:

Available in White

White

Product Information

Description

Window Master WCC 320 Standard UL

20A MotorController for natural ventilation in up to 8 rooms / zones

  • 20A
  • up to 8 motor lines and 10 inputs
  • KNX
  • Control of ±24V DC standard actuators and actuators with MotorLink®



Natural ventilation

The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

Output current of 20A

The product have a maximum output current of 20A

120V rated voltage

The product use rated voltage 120V

MotorLink®

The product communicates with power supplies with MotorLink® – an intelligent patented digital communication from WindowMaster

KNX certified

The product is KNX certified and supports this BUS communication



MotorController for daily comfort ventilation
MotorController for the control of ±24V DC standard actuators and actuators with MotorLink® for daily comfort ventilation. It can also control espagnolette/locking actuators.
The MotorController can be used in small and medium sized buildings as well as in building sections e.g. stair cases and restaurants.

The MotorController controls (opens/closes) the window actuators based on the signals from the connected components e.g. keypads, room sensor, weather sensor and BUS commands.

The MotorController has
– up to 8 motor lines and 10 inputs
– 20A

Additional information

Manufacturer

Brand

Window Master
WindowMaster brand products

Technical Details

Model:

WCC 320 Standard UL
Primary voltage:

120V AC, 60Hz (85-264V AC, 47-63Hz)
Output current:

WCC 320: 20A
Colour:

White (RAL 9010)
Size:

7355 x 320 x 76mm (WxHxD)

Download PDF's

Window Master WCC 320 Standard UL (US) Data Sheet

Window Master WCC 320 Standard UL Data Sheet
