Brand: Window Master | Manufacturer Part numbers: WCC 320 Plus
Primary voltage: 230V AC, 50Hz (85-264V AC, 47-63Hz)
Up to 10 motor lines and 12 inputs
Output current: WCC 320: 20A

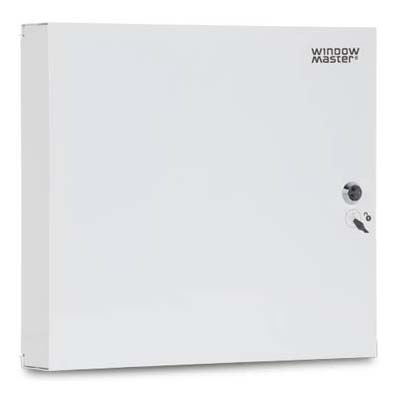

Window Master WCC 320 Plus
20A MotorController with touch screen for configuration of natural ventilation in up to 10 rooms / zones
The product is BACnet compliant, BTL tested and supports this BUS communication
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate
The product have a maximum output current of 20A
The product use rated voltage 230V
The product communicates with power supplies with MotorLink® – an intelligent patented digital communication from WindowMaster
The product is KNX certified and supports this BUS communication
The product is Modbus compliant and supports this BUS communication
MotorController for daily comfort ventilation
MotorController for the control of ±24V DC standard actuators and actuators with MotorLink® for daily comfort ventilation. It can also control espagnolette/locking actuators.
The MotorController can be used in small and medium sized buildings as well as in building sections e.g. stair cases and restaurants.
The MotorController controls (opens/closes) the window actuators based on the signals from the connected components e.g. keypads, room sensor, weather sensor and BUS commands.
The MotorController has
– up to 10 motor lines and 12 inputs
With build-in touch screen for configuration.
