Product Information

Description

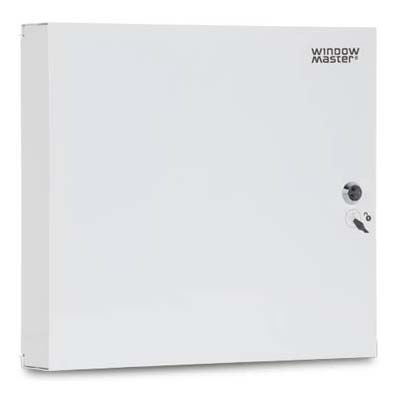

Window Master WCC 310 Plus UL

10A MotorController with touch screen for configuration of natural ventilation in up to 10 rooms / zones

  • 10A
  • Up to 10 motor lines and 12 inputs
  • KNX, BACnet IP/MSTP and MODBUS TCP/RTU
  • Control of ±24V DC standard actuators and actuators with MotorLink®



BACnet

The product is BACnet compliant, BTL tested and supports this BUS communication

Natural ventilation

The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

Output current of 10A

The product have a maximum output current of 10A

120V rated voltage

The product use rated voltage 120V

MotorLink®

The product communicates with power supplies with MotorLink® – an intelligent patented digital communication from WindowMaster

KNX certified

The product is KNX certified and supports this BUS communication

Modbus

The product is Modbus compliant and supports this BUS communication



MotorController for daily comfort ventilation
MotorController for the control of ±24V DC standard actuators and actuators with MotorLink® for daily comfort ventilation. It can also control espagnolette/locking actuators.
The MotorController can be used in small and medium sized buildings as well as in building sections e.g. stair cases and restaurants.

The MotorController controls (opens/closes) the window actuators based on the signals from the connected components e.g. keypads, room sensor, weather sensor and BUS commands.

The MotorController has
– up to 10 motor lines and 12 inputs
– 10A

With build-in touch screen for configuration.

Additional information

Manufacturer

Brand

Window Master
WindowMaster brand products

Technical Details

Model:

WCC 310 Standard UL
Primary voltage:

120V AC, 60Hz (85-264V AC, 47-63Hz)
Output current:

WCC 310: 10A
Colour:

White (RAL 9010)
Size:

7355 x 320 x 76mm (WxHxD)

Download PDF's

Window Master WCC 310 Plus UL instructions

Window Master WCC 310 Plus UL Data Sheet
